Garrett GT42R Turbochargers
PT Turbo lists 4 complete turbochargers, 3 CHRA cartridges, 2 installation kits and 2 other parts for the Garrett GT42R, with complete turbos from $2,395 to $2,695. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Garrett GT42R is
GT42R is Garrett’s name for its ball-bearing GT42 turbos, the GT4294R and GT4202R. Garrett’s 2015 catalog rates the GT4294R at 425 to 850 horsepower (500 to 850 on its earlier web page), with a 70.3 / 94.0 mm, 56 trim compressor wheel and an 82 mm, 84 trim Inconel turbine wheel, and the GT4202R at 450 to 1,000 horsepower with a 74.7 / 102.3 mm compressor wheel and the same turbine size, on engines of 2.0 to 7.0 liters (8.0 on the web pages). GT42 turbine housings come with T4 or large diesel inlet flanges.

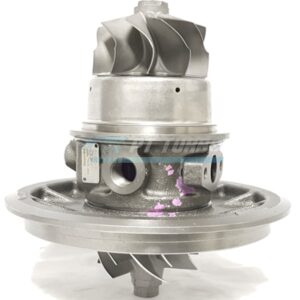

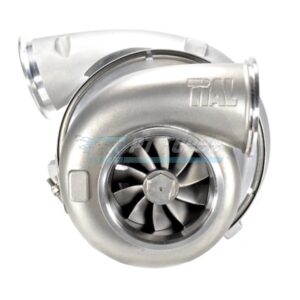

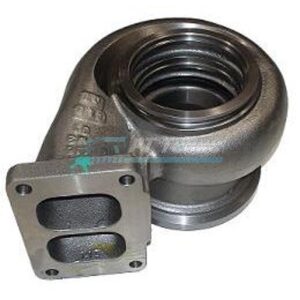

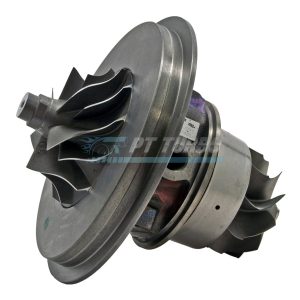

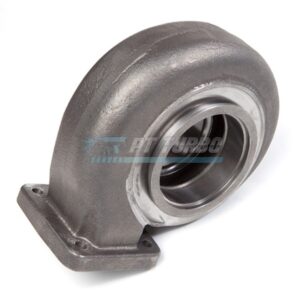

This page lists GT42R turbos (94 mm, 850 hp versions with stainless V-band housings in 1.02, 1.16 and 1.30 A/R), CHRAs (451888-5009S, 451888-5011S), T4 and T6 turbine housings, a coolant fitting kit and a gasket set. Garrett’s own guidance on turbine housings: a smaller A/R gives quicker boost response and more turbine power at low engine speed; a larger A/R lets the wheel flow more, with lower back pressure and more power at high engine speed.
Sources: Garrett GT4294R (archived 2007) · Garrett GT4202R (archived 2007) · Garrett catalog volume 5 (2015, archived) · Garrett: Turbine Housings 101
About the Garrett GT42R
- In the catalog
- 4 complete turbochargers, 3 CHRA cartridges, 2 installation kits and 2 other parts
- Complete turbo price
- $2,395 to $2,695
- Shop by category
- GT / GTX 42 Models·Garrett Performance Turbos·GT / GTX Ball Bearing·CHRA
