Garrett GT2560S Turbochargers
PT Turbo lists 16 complete turbochargers, 2 CHRA cartridges and 1 installation kit for the Garrett GT2560S, with complete turbos from $676 to $1,384. Most fit Perkins engines, with others for Caterpillar (CAT) and JCB. Each listing is one exact part number, so match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
Categories and filters
What the Garrett GT2560S is

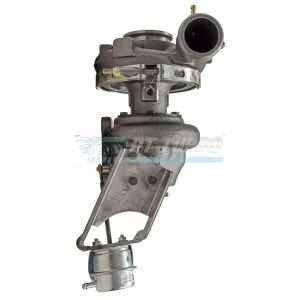

The GT2560S is a Garrett wastegated turbo with a pressure actuator and an oil-cooled bearing housing, fitted to Perkins and Caterpillar engines. Distributors list genuine Garrett 785828-5005S (Perkins 2674A806) for the Perkins 1004 4.0 liter at 141 hp, EPA Tier 3, from 2006; 804330-5030S as the high-pressure turbo of the two-stage system on the Caterpillar C7.1 in 324E to 329E excavators; 914553-5003S for the Perkins 1206 / Caterpillar C7 Tier 4 Final at 275 hp; and 881294-5004S for the Caterpillar C6.6 and C7.1 at 173 hp. All four numbers are on this page.
This page lists complete GT2560S turbos, CHRAs and an installation kit, mostly for Perkins engines, with others for Caterpillar and JCB. Each listing here is one exact part number, so match the full number on your turbo’s tag, or call (909) 824-1020 with your engine model and serial number.
Sources: GT2560S for Perkins 1004 (parts distributor) · GT2560S for Cat C7.1 (two-stage) (parts distributor) · GT2560S for Perkins 1206 / Cat C7 (parts distributor) · GT2560S for Cat C6.6 / C7.1 (parts distributor)
About the Garrett GT2560S
- In the catalog
- 16 complete turbochargers, 2 CHRA cartridges and 1 installation kit
- Engine makes (listings)
- Perkins 7·Caterpillar (CAT) 4·JCB 1
- Complete turbo price
- $676 to $1,384
- Shop by category
- Garrett Turbos·Perkins Turbos·Caterpillar Turbos·CHRA
Where the Garrett GT2560S fits
Engines, years and machines as the Applications tables of the complete turbochargers on this page list them, with the part numbers that fit. Match the number on your turbo’s data plate before ordering, or call (909) 824-1020 and we will match it for you.
| Engine | Years | Used in | Part numbers |
|---|---|---|---|

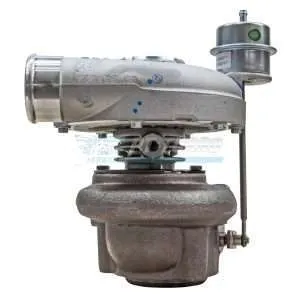

| Perkins 4.0L | — | — | 785828-5005S, 785828-5001S |

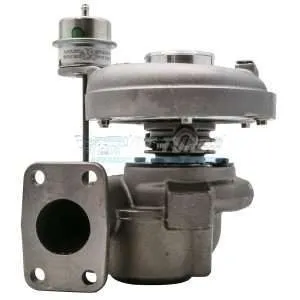

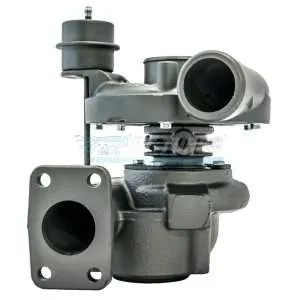

| Perkins 4.0L 143HP | — | — | 785828-5004S, 785828-5003S |

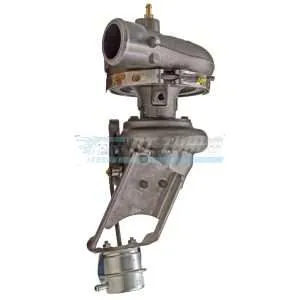

| Caterpillar (CAT) 7.1L | — | — | 804330-5029S |

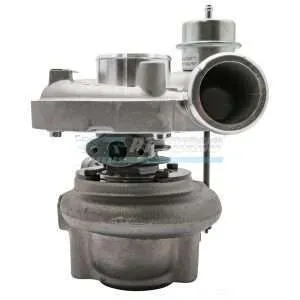

| Caterpillar (CAT) C4.4 4.0L 143HP | — | — | 785828-5002S |

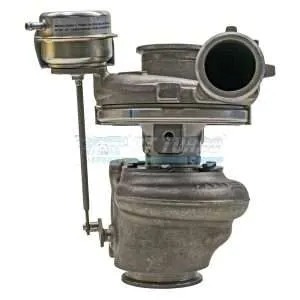

| Caterpillar (CAT) C7.1 7.1L | — | — | 914553-5003S |

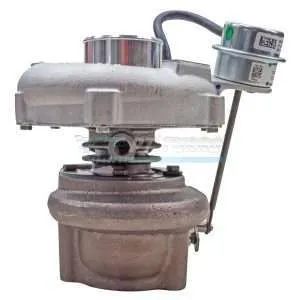

| JCB Dieselmax 4.4L 130HP, 145HP | — | JCB Miscellaneous (Off-Highway) | 802455-5002S |
| Perkins C7.1 7.1L | — | — | 914553-5003S |
