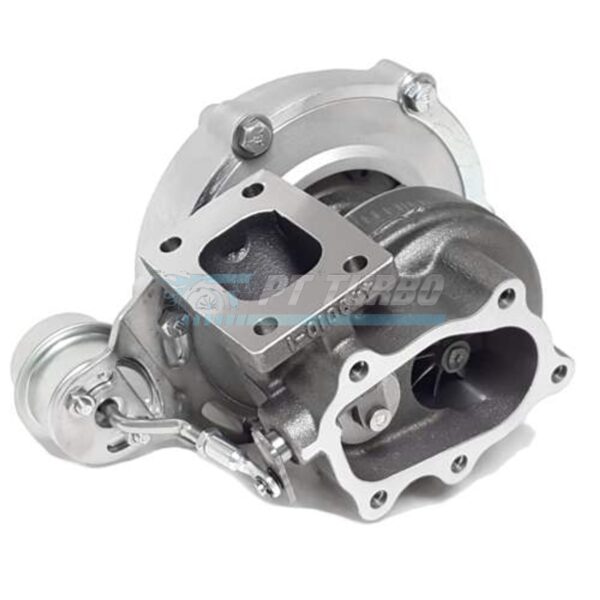

Turbocharger, Garrett GT2871R, 56 Trim, .64 A/R, T25, 5 Bolt Int. Wgt.

The Garrett GT2871R dual ball bearing turbocharger is engineered for enthusiasts building small displacement engines who demand rapid spool and strong top-end power delivery. Its 56 trim compressor wheel and .64 A/R T25 5 bolt internal wastegate turbine housing make it a proven choice for drivers seeking quick throttle response without sacrificing flow. This turbo is built for those who want serious performance from a compact, efficient package.

Specifications

• Compressor Wheel Inducer: 53mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 56
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• A/R Ratio: .64
• Turbine Housing Flange: T25 5 bolt internal wastegate
• Wastegate Actuator: 1 bar
• Bearing Type: Dual Ball Bearing
• HP Capacity: Approximately 400HP

Performance & Application

This GT2871R dual ball bearing turbocharger is designed for small displacement engines up to 2.2L, making it a strong fit for builders looking to maximize response on compact powerplants. The dual ball bearing design delivers the ultimate spool up time compared to other units in its class, giving drivers a noticeable advantage in transient response. With a flow capacity of about 400HP, this turbo suits enthusiasts who want a balance of quick spool and meaningful power capacity. It’s an excellent choice for those prioritizing driveability and responsiveness over ultimate top-end power.

Frequently Asked Questions

Is the GT2871R a ball bearing or journal bearing turbo?

The GT2871R is a dual ball bearing turbocharger.

What HP can the GT2871R support?

This turbo has a flow capacity of about 400HP.

What is the A/R ratio of this turbine housing?

The turbine housing features a .64 A/R ratio.

What engines is the GT2871R suited for?

This dual ball bearing turbo is great for small displacement engines up to 2.2L.

For enthusiasts building a responsive, small displacement performance engine, the Garrett GT2871R dual ball bearing turbocharger delivers the spool characteristics and flow capacity needed to get the job done right.
