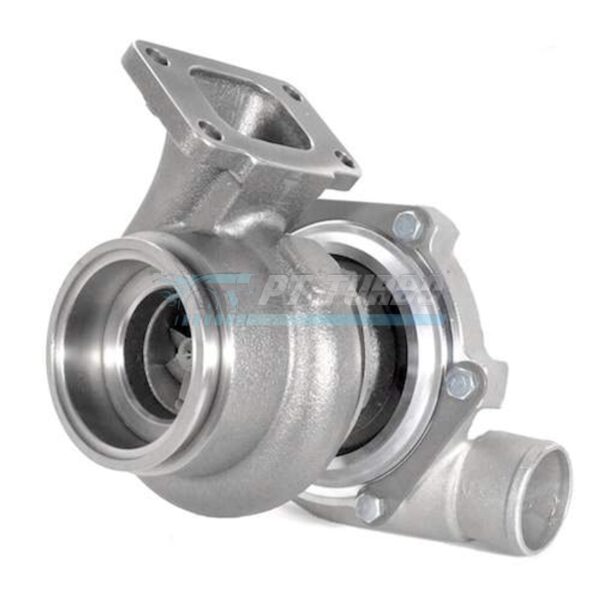

The Garrett GT2871R with the special 52 trim compressor wheel is built for enthusiasts chasing serious power without sacrificing the ability to build boost quickly. This turbocharger is engineered for platforms demanding a strong top-end powerband paired with a compressor housing designed to resist surge under aggressive tuning conditions. For builders who need a dual ball bearing core that can handle real horsepower while maintaining sharp throttle response, this is the turbo to spec.

Specifications

• Compressor Wheel Exducer: 71mm
• Compressor Wheel Inducer: 51.19mm
• Compressor Wheel Trim: 52
• Turbine Wheel Inducer: 53.9mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Bearing Type: Dual Ball Bearing
• Compressor Housing Inlet: 3″
• Compressor Housing Outlet: 2″
• Compressor Housing Type: Anti-Surge
• Turbine Housing A/R Ratio: .48
• Turbine Housing Flange: T3 Undivided
• Turbine Housing Outlet: GT 3″ V-Band
• HP Capacity: +400HP potential flow

Performance & Application

This GT2871R configuration is designed to deliver strong power potential while retaining the responsive spool characteristics that make the GT28 series a favorite among performance builders. The dual ball bearing core reduces bearing friction for quicker spool and improved transient response compared to journal bearing designs. The anti-surge compressor housing helps maintain compressor efficiency and stability at higher boost levels and wider operating ranges. With its T3 undivided turbine housing and V-band outlet, this turbo is suited for builds targeting significant horsepower gains without giving up drivability.

Frequently Asked Questions

Is the GT2871R (52 trim) a ball bearing or journal bearing turbo?

This turbocharger uses a dual ball bearing (DBB) design.

What A/R ratio does this turbine housing use?

It uses a .48 A/R T3 undivided turbine housing.

How much horsepower can this turbo support?

This turbocharger offers +400HP potential flow.

What compressor housing configuration does this turbo use?

It features a 3″ inlet and 2″ outlet anti-surge compressor housing.

For builders targeting a 400+ horsepower platform with a dual ball bearing core and anti-surge compressor design, this GT2871R 52 trim configuration delivers the performance foundation to get there.
