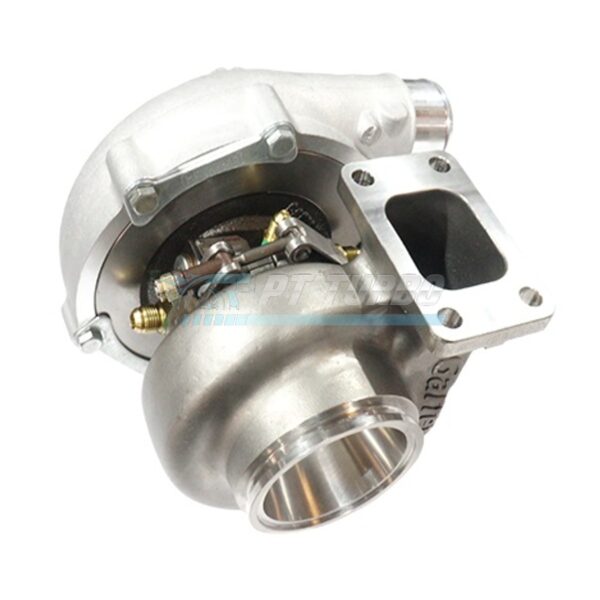

Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT

Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT

$2,642.37

Garrett G30-770: up to 770 HP with 58mm/71mm compressor wheel and 60mm/55mm turbine wheel. Features 0.72 A/R compressor, 1.01 A/R undivided T3 inlet, and 3.55″ V-band outlet turbine housing with dual ball bearings.

Specifications

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Compressor Inlet: 4″
  • Compressor Outlet: 2″
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 1.01, Undivided
  • Turbine Housing Inlet: T3 Open (undivided) inlet (same flange size and placement as GTX)
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
  • Bearing Type: Dual Ball Bearing
  • HP Capacity: Up to 770 HP
  • Model: G30-770
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Turbocharger, Garrett G30-770, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3″ VB OUT”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G30-770

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
