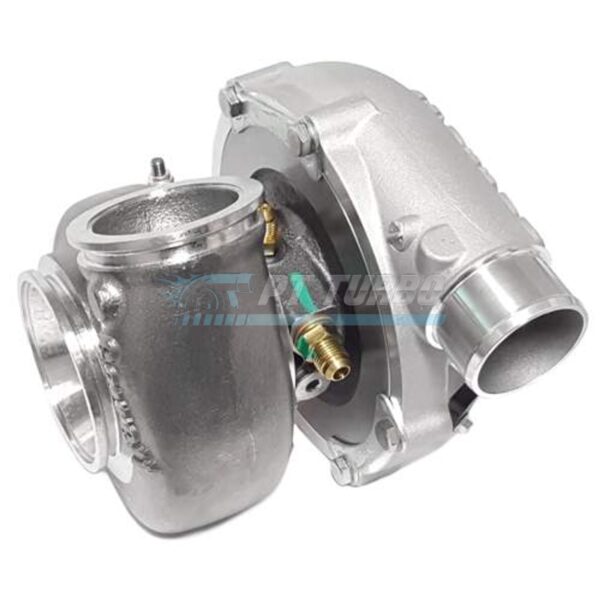

The Garrett G30-770 reverse rotation turbocharger is engineered for high-performance builds that demand precise packaging and serious airflow in a compact G Series footprint. Its reverse rotation configuration and V-band turbine housing make it a preferred choice for engineers and enthusiasts designing tight, custom exhaust and compressor routing on high-output platforms. This unit ships ready for integration with the fittings and clamps needed to get it on the engine quickly.

Specifications

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 Inch
• Compressor Housing Outlet: 2 Inch
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 1.21 O/V
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm) O.D. V-Band w/81mm centering ring
• Rotation: Reverse Rotation
• Garrett P/N: 880698-5010S

Performance & Application

The G30-770 reverse rotation turbo is built for high-performance engine platforms where a reverse-spinning compressor and V-band turbine housing simplify complex piping layouts. Its wheel geometry and turbine A/R are configured to deliver strong response while supporting demanding boost requirements. This turbo is suited to builds where precise packaging and V-band connections at both the turbine inlet and outlet are priorities. The reverse rotation design allows for cleaner integration into custom manifold and compressor housing orientations.

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
• Turbine Housing Inlet & Outlet V-Band Clamps

Frequently Asked Questions

What is the A/R ratio of the Garrett G30-770 reverse rotation turbo?

This turbo features a 0.72 A/R compressor housing and a 1.21 A/R O/V turbine housing.

What type of turbine housing connections does this turbo use?

The G30-770 reverse rotation turbo uses a V-band inlet and outlet on the turbine housing, with a 3 Inch O.D. V-Band inlet and a 3.55 inch (90mm) O.D. V-Band outlet with an 81mm centering ring.

Is this turbo standard or reverse rotation?

This is a Garrett G30-770 reverse rotation turbocharger.

What fittings are included with this turbo?

It includes an oil feed (1mm) restrictor fitting to -4AN, two coolant fittings to -6AN, and turbine housing inlet & outlet V-band clamps.

For builds requiring a reverse rotation Garrett G Series turbo with V-band turbine connections and ready-to-install fittings, the G30-770 (P/N 880698-5010S) delivers the precise specifications and hardware needed to move forward with confidence.
