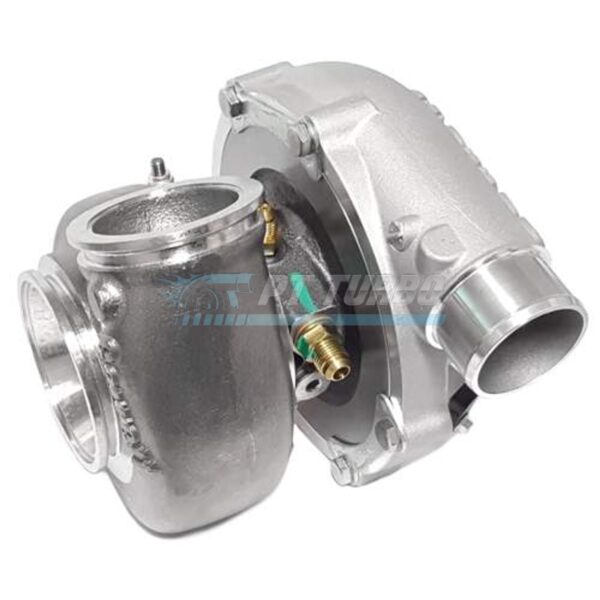

Turbocharger, Garrett G30-770, REVERSE ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880698-5009S

The Garrett G30-770 reverse rotation turbocharger is engineered for high-performance builds where housing orientation and packaging flexibility matter as much as raw output. Built for enthusiasts and shops running custom or tight-clearance turbo layouts, this reverse-rotation configuration delivers Garrett’s proven G Series performance with the mounting versatility that reverse rotation platforms demand. It’s the right choice for builders who need a genuine, race-proven G30 core matched to a V-band turbine housing for simplified, leak-free installation.

Specifications

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 65
• Compressor Housing A/R: 0.72
• Compressor Housing Inlet: 4 Inch
• Compressor Housing Outlet: 2 Inch
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: 1.01 O/V
• Turbine Housing Inlet: 3 Inch O.D. V-Band
• Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
• Rotation: Reverse Rotation
• Garrett P/N: 880698-5009S

Performance & Application

This G30-770 reverse rotation unit is built around Garrett’s G Series compressor and turbine wheel architecture, pairing a 4-inch compressor inlet with a 2-inch outlet housing for strong airflow characteristics suited to serious power builds. The V-band turbine housing inlet and outlet simplify manifold and downpipe fabrication while maintaining a secure, leak-resistant seal at high boost and exhaust gas temperatures. Reverse rotation makes this turbo particularly well suited to custom installations, twin-turbo setups, and platforms where compressor and turbine orientation must be mirrored from a standard G30-770. This configuration is intended for builders executing precision, high-output turbo system designs.

What’s Included

• Oil Feed (1mm) Restrictor Fitting to -4AN
• Two Coolant Fittings to -6AN
• Turbine Housing Inlet & Outlet V-Band Clamps

Frequently Asked Questions

What is the A/R ratio on this G30-770 turbine housing?

This turbo uses a 1.01 A/R O/V V-band turbine housing.

What size is the compressor housing inlet and outlet?

The compressor housing has a 4″ inlet and 2″ outlet.

What connections does the turbine housing use?

The turbine housing uses V-band connections on both the inlet and outlet, with the inlet at 3 Inch O.D. V-Band and the outlet at 3.55 inch (90mm) O.D. V-Band with an 81mm centering ring.

What fittings and clamps come with this turbocharger?

It includes an oil feed (1mm) restrictor fitting to -4AN, two coolant fittings to -6AN, and turbine housing inlet and outlet V-band clamps.

For builders who demand genuine Garrett engineering with the mounting flexibility of reverse rotation, the G30-770 P/N 880698-5009S delivers the precision and durability required for high-performance turbo systems.
