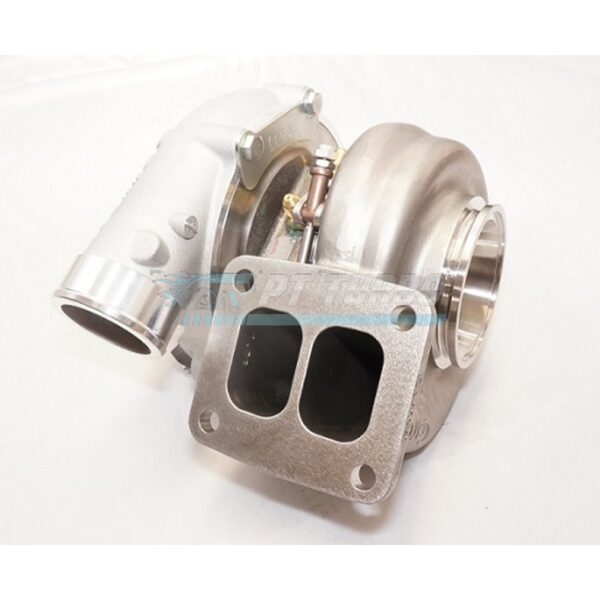

Turbocharger, Garrett G30-660, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3″ VB OUT

Specifications

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Compressor housing: 0.70 A/R, 3″ inlet and 2″ outlet
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Turbine inlet: divided T4, the same flange size and position as the GTX turbos
• Turbine outlet: V-band, 3.55″ (90 mm) outside diameter with an 81 mm centering ring
• Rotation: standard

Features

• G Series compressor wheel aerodynamics
• Fully machined speed sensor and pressure ports
• One-piece center housing and backplate
• Mar-M alloy turbine wheel and stainless steel turbine housing, both rated to 1050°C (1922°F)
• Oil restrictor and water fittings included: a 1 mm oil feed restrictor to -4AN and two coolant fittings to -6AN
