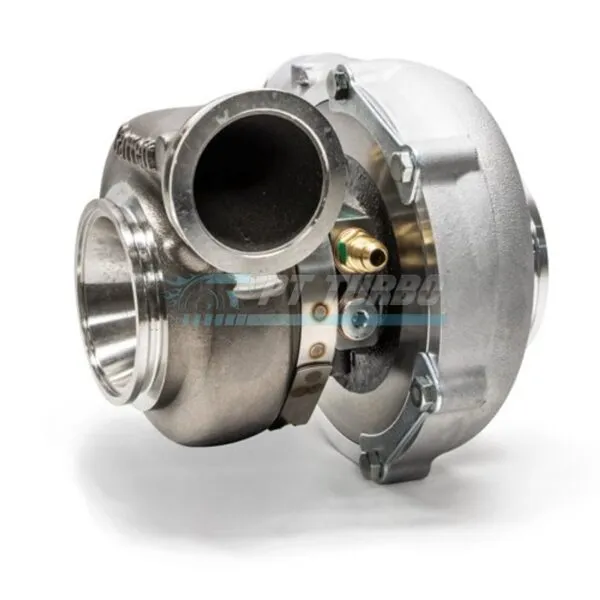

Turbocharger, Garrett G30-660 STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5003S
Turbocharger, Garrett G30-660 STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5003S
Turbocharger, Garrett G30-660 STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5003S
Turbocharger, Garrett G30-660 STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5003S

Turbocharger, Garrett G30-660 STANDARD ROTATION, 1.01 A/R O/V, V-Band In/Out, P/N 880697-5003S

$2,469.44

Garrett G30-660 standard rotation turbo (P/N 880697-5003S) with 54/67mm compressor wheel, 60/55mm turbine wheel, 0.70 compressor A/R, and 1.01 O/V turbine A/R. Features 3″ inlet and 2″ outlet V-band housings with integral oil and coolant provisions for universal engine applications.

Specifications

  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.70
  • Compressor Housing Inlet: 3 Inch
  • Compressor Housing Outlet: 2 Inch
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 1.01 O/V
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
  • Rotation: Standard Rotation
  • Garrett P/N: 880697-5003S
Weight 20 lbs
