Turbo Kit, Garrett G30-660, Focus ST 2.0L Ecoboost, Stock Location, Bolt On, .61 A/R, Ext. Wgt.

Turbo specifications

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Compressor housing: 0.70 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim, Mar-M alloy rated to 1050°C
• Turbine housing: 0.61 A/R, external wastegate port

What is in the kit

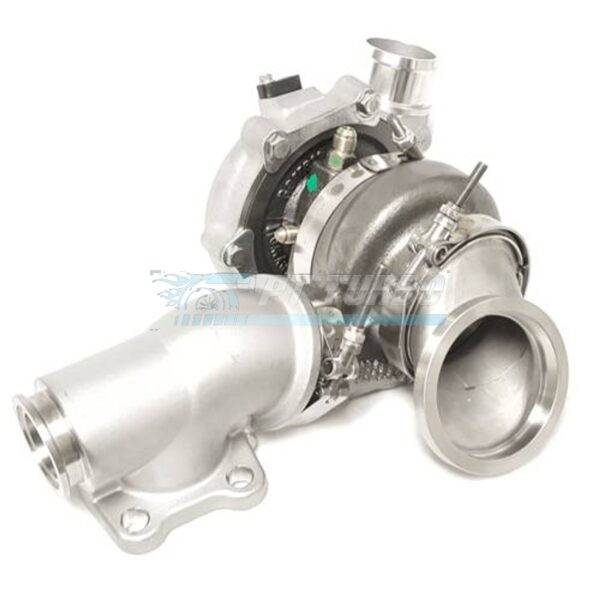

• Garrett G30-660 turbocharger
• Stainless steel V-band flanged turbo adapter
• -4AN oil feed fitting and -6AN coolant fittings
• New steel-braided oil feed line and coolant lines

Fitment

• Works with any downpipe made for the stock turbo flange
• Works with intake and charge pipes made for the stock turbo position
• Uses the stock oil drain tube

Not included: the TiAL MVS wastegate and a dump tube, which are sold separately. An externally wastegated turbo cannot be run without its wastegate.
