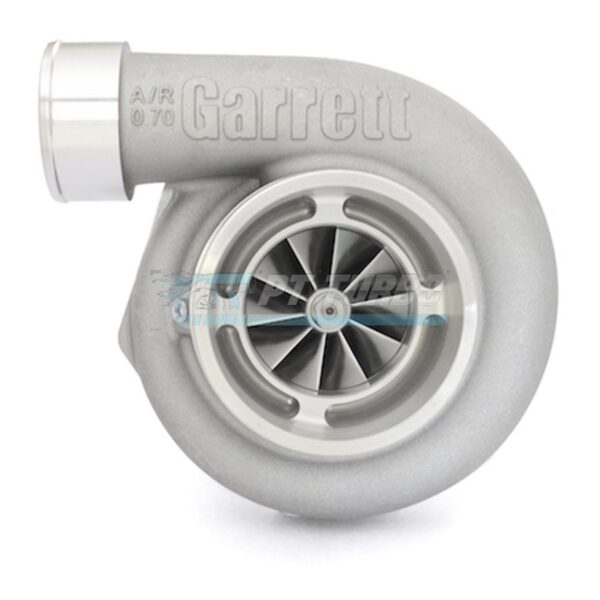

Supercore, Garrett, REVERSE Rotation Gen2 GTX3582R, P/N: 844626-5004S

The Garrett GEN2 GTX3582R Reverse Rotation SuperCore is built for enthusiasts and shops constructing a custom high-output turbo system who need a proven core to pair with their own turbine housing and compressor housing selection. Featuring Garrett’s advanced Gen2 billet compressor wheel, this dual ball bearing SuperCore delivers ultra high flow capability for serious forced induction builds. It’s the ideal foundation for anyone assembling a reverse rotation GTX3582R setup tailored to a specific application.

Specifications

• Compressor Wheel Inducer: 66mm
• Compressor Wheel Exducer: 82mm
• Compressor Wheel Trim: 64
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Bearing Type: Dual Ball Bearing
• HP Capacity: 850HP
• Configuration: Reverse Rotation
• Housing: SuperCore — No Turbine Housing Included
• Garrett P/N: 844626-5004S

Performance & Application

This Gen2 GTX3582R SuperCore is engineered for high-output builds requiring a reverse rotation configuration, giving builders flexibility in turbo system layout and packaging. The advanced billet compressor wheel is designed for ultra high flow performance, supporting significant horsepower capability for serious forced induction applications. As a SuperCore, it’s intended for builders who will select and install their own turbine housing to match specific manifold and application requirements. This configuration suits performance-focused platforms where a custom-tailored reverse rotation turbo system is being assembled.

Frequently Asked Questions

What HP can the GTX3582R Gen2 SuperCore support?

This SuperCore’s advanced Gen2 billet compressor wheel is capable of supporting up to 850HP.

Is this a ball bearing or journal bearing unit?

This SuperCore uses a dual ball bearing configuration.

Does this SuperCore include a turbine housing?

No, this is a SuperCore and does not include a turbine housing.

What is the compressor wheel trim on this unit?

The compressor wheel features a 64 trim with a 66mm inducer and 82mm exducer.

For builders assembling a custom reverse rotation GTX3582R system, this Gen2 dual ball bearing SuperCore delivers the proven high-flow foundation needed to reach serious horsepower targets.
