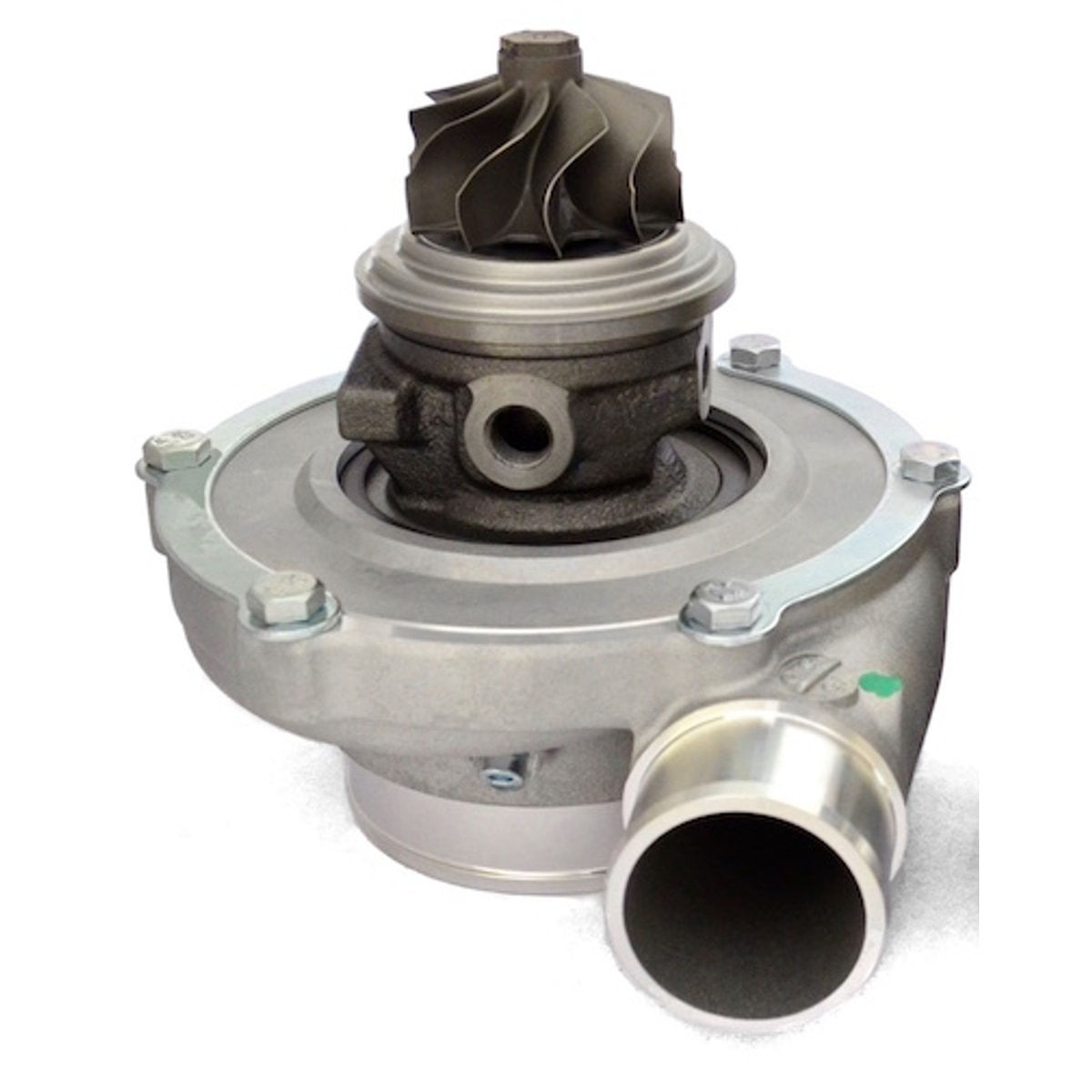

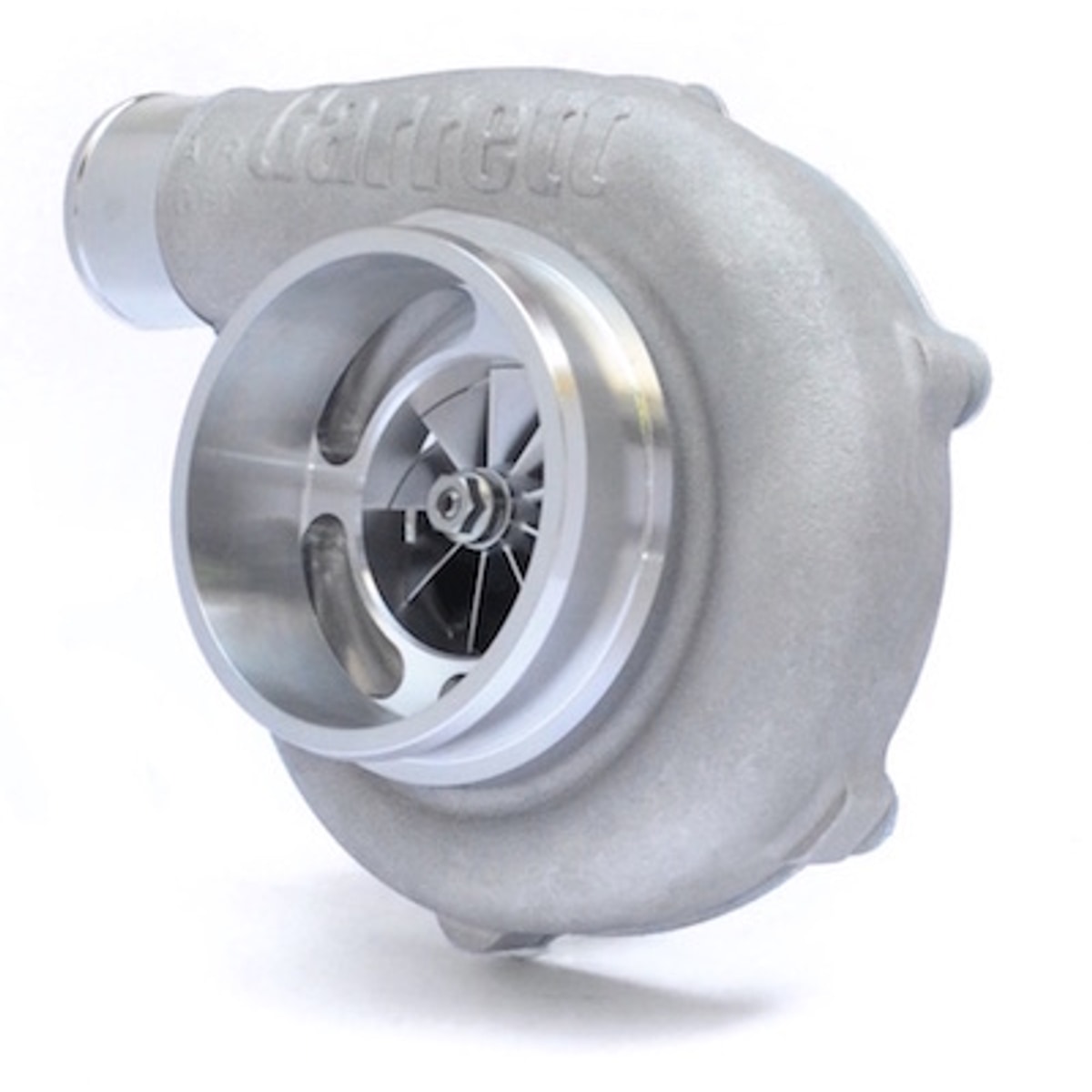

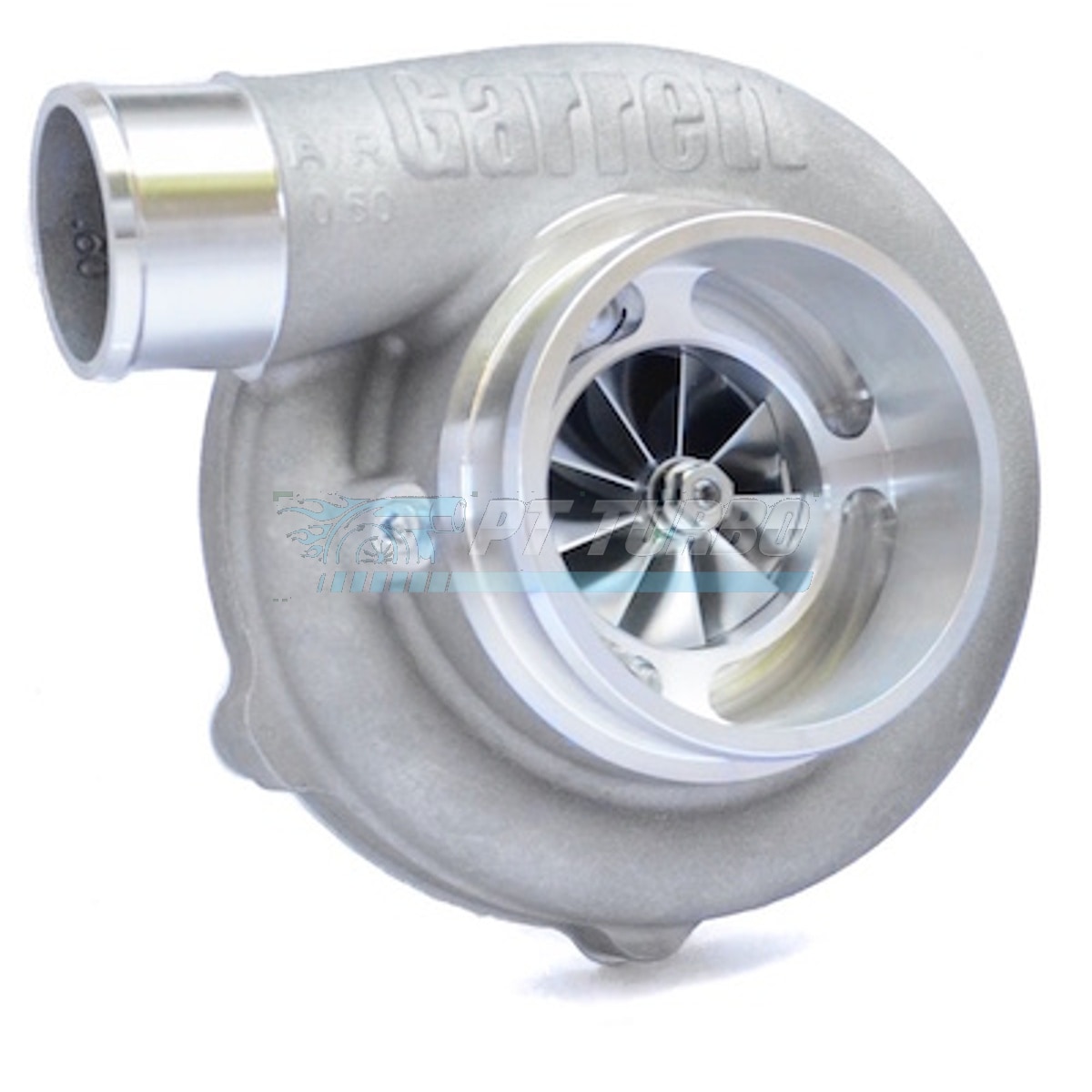

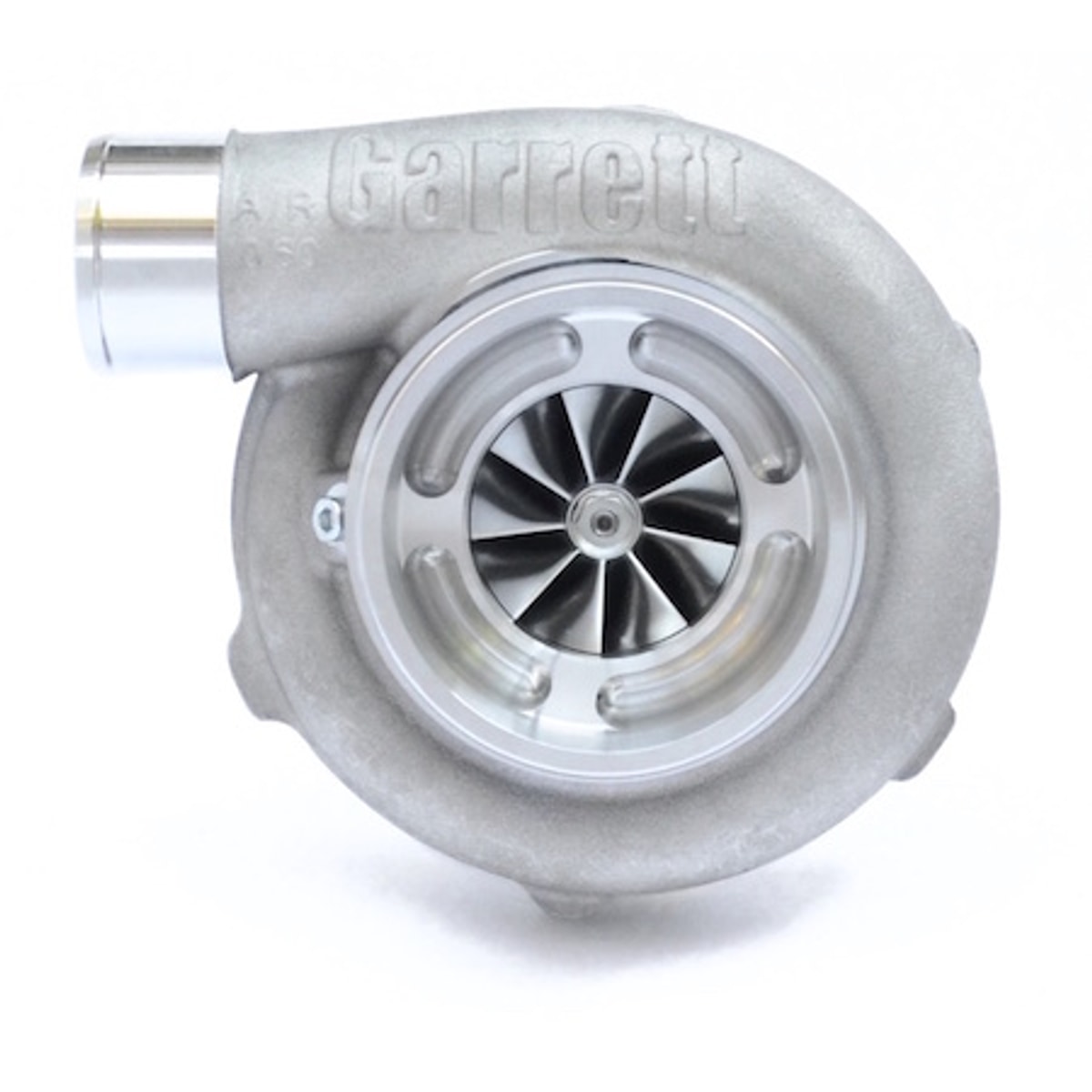

The Garrett Gen2 GTX3576R Reverse Rotation Supercore is built for serious builders who need a dual ball bearing core capable of pushing serious power without compromise. Featuring an advanced billet compressor wheel, this Supercore delivers ultra high-flow performance for enthusiasts building a custom reverse rotation turbo system. It’s the ideal foundation for those who demand top-tier Garrett Gen2 technology and plan to pair it with their own turbine housing.

Specifications

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 58
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Bearing Type: Dual Ball Bearing
• Rotation: Reverse Rotation
• HP Capacity: 750HP
• Turbine Housing: Not Included (Supercore)
• Garrett P/N: 844626-5003S

Performance & Application

This Gen2 GTX3576R Supercore is engineered for high-performance builds requiring a reverse rotation configuration, making it a fit for platforms where standard rotation turbos won’t work. The ultra high-flow Gen2 billet compressor wheel is capable of supporting up to 750HP, giving builders serious headroom for aggressive power targets. As a dual ball bearing core, it’s designed for enthusiasts who prioritize durability and responsiveness in demanding applications. This Supercore is intended for builders assembling a complete turbo system with their own selected turbine housing.

Frequently Asked Questions

What HP can the Gen2 GTX3576R Supercore support?

The advanced Gen2 billet compressor wheel is capable of supporting up to 750HP.

Is this a ball bearing or journal bearing turbo?

This Supercore uses a dual ball bearing configuration.

Does this Supercore include a turbine housing?

No, this is a Supercore and does not include a turbine housing.

What rotation is this turbo configured for?

This Gen2 GTX3576R Supercore is built in a reverse rotation configuration.

For builders who need proven Garrett Gen2 technology in a reverse rotation platform capable of supporting serious horsepower, the GTX3576R Supercore delivers the performance foundation to get there.
