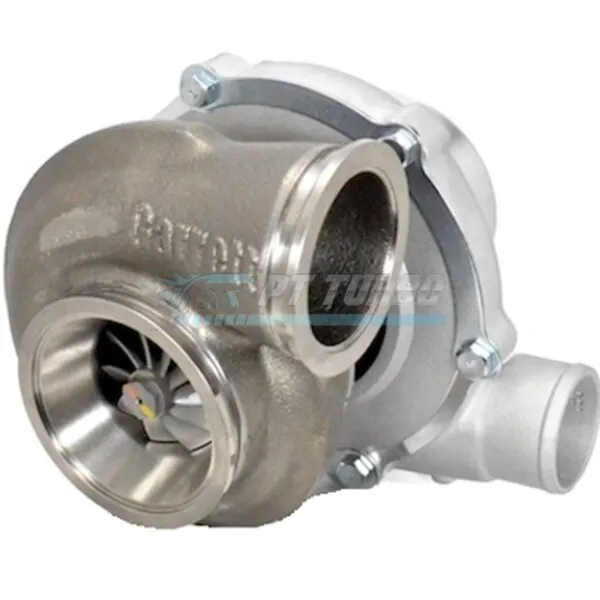

GTX2967R DBB turbo , w/ .101 A/R Garrett UND VBAND Tbn Hsg, VBAND 3″ EXIT

The Garrett GTX2967R is a dual ball bearing turbocharger built for enthusiasts who want a direct upgrade path from GT28 or GTX28 series turbos without sacrificing fitment. Backed by Garrett’s GTX-R engineering, it delivers serious flow potential while dropping in where your existing GT28/GTX28 turbo once lived. This is the choice for builders who demand more capability from a proven platform without reworking their setup.

Specifications

• Compressor Wheel Inducer: 50mm
• Compressor Wheel Exducer: 67mm
• Compressor Wheel Trim: 55
• Turbine Wheel Inducer: 57mm
• Turbine Wheel Exducer: 52mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: .101
• Turbine Housing Inlet: Garrett undivided v-band
• Turbine Housing Exit: 3″ v-band
• Bearing System: Dual ball bearing
• HP Potential: 500HP flow potential
• Garrett P/N: GTX2967R

Performance & Application

The GTX2967R is engineered as a direct drop-in replacement for existing GT28 or GTX28 series turbochargers, making it an ideal upgrade for platforms already built around that housing footprint. Its dual ball bearing design supports quicker response characteristics typical of GTX-R architecture while unlocking additional flow capacity beyond stock GT28/GTX28 turbos. With 500HP-capable flow potential, this turbo suits builders pushing their platform harder without changing their existing turbo mounting setup. The undivided v-band inlet and v-band 3″ exit turbine housing streamline installation for those upgrading from the GT28/GTX28 family.

Compatibility & Fitment

• Direct drop-in replacement for existing GT28 series turbochargers
• Direct drop-in replacement for existing GTX28 series turbochargers

Frequently Asked Questions

What HP can the GTX2967R support?

The GTX2967R offers 500HP flow potential.

Is this a ball bearing or journal bearing turbo?

The GTX2967R is a dual ball bearing turbocharger.

What is the A/R ratio of the turbine housing?

The turbine housing uses a .101 A/R with a Garrett undivided v-band inlet and v-band 3″ exit.

Will the GTX2967R fit my existing GT28 or GTX28 turbo setup?

Yes, the GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers.

For builders seeking a straightforward upgrade over their GT28 or GTX28 series turbo, the GTX2967R delivers dual ball bearing performance and 500HP flow potential in a housing configuration designed to bolt right in.
