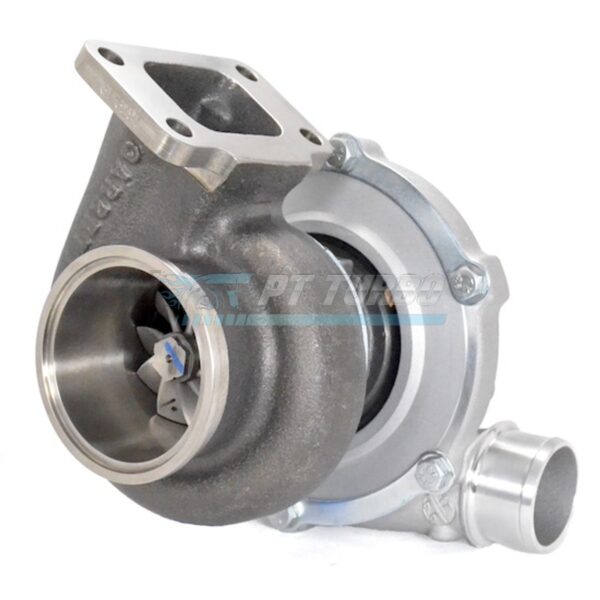

The Garrett GTX3582R GEN2 is a purpose-built performance turbocharger engineered for Nissan SR20DET enthusiasts who demand serious top-mount power without sacrificing response. Built around Garrett’s advanced GEN2 billet compressor wheel platform, this configuration is tailored for builders chasing big horsepower numbers while retaining the durability of a dual ball bearing core. It’s the choice for tuners and shops who need a proven, high-output turbo matched to a purpose-specific turbine housing.

Specifications

• Compressor Wheel Inducer: 66mm
• Compressor Wheel Exducer: 82mm
• Compressor Wheel Trim: 64
• Compressor Housing A/R: 0.70
• Frame: T04S
• Inlet/Outlet: 4″ in / 2.5″ out
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: .82
• Turbine Housing Type: T3
• Turbine Housing Outlet: 3″ GT V-band conical exit
• Turbine Housing Lip: 81mm
• Bearing Type: Dual Ball Bearing
• HP Capacity: 850HP

Performance & Application

This GTX3582R GEN2 is designed for high-horsepower SR20DET builds that require a turbine housing matched to Garrett’s GT35 and GTX35 series wheel configuration. The advanced GEN2 billet compressor wheel allows this turbo to reach up to 850 horsepower while the dual ball bearing core supports quick spool and confident response under boost. The .82 A/R T3 turbine housing with a 3″ GT V-band conical exit is built for builders who want a top-mount setup capable of serious power delivery. This configuration is well suited for enthusiasts building a dedicated high-output SR20DET platform.

Compatibility & Fitment

• Nissan SR20DET
• Fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel

Frequently Asked Questions

What HP can the GTX3582R GEN2 support?

The advanced GEN2 billet compressor wheel is capable of supporting up to 850HP.

Is this a ball bearing or journal bearing turbocharger?

The GTX3582R GEN2 is a dual ball bearing turbocharger.

What turbine housings is this compressor wheel compatible with?

It fits turbine housings for Garrett GT35 and GTX35 series turb
