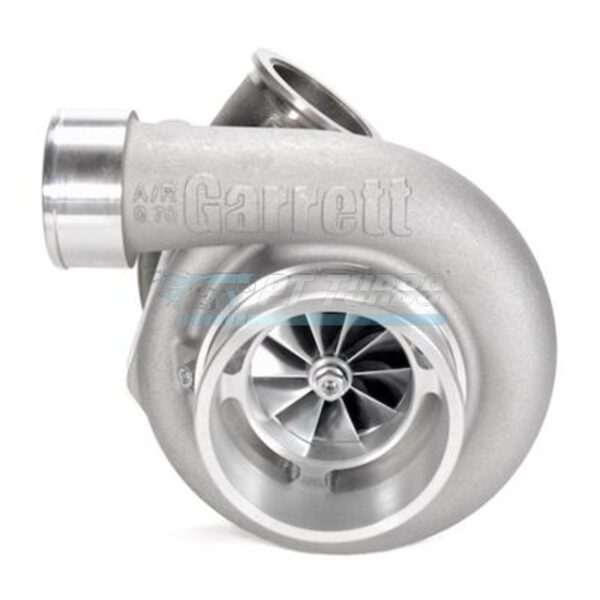

GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
GEN2 - Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing

GEN2 – Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing

$2,996.53

Dual ball bearing GTX3582R (P/N 871389-5007S) with 66/82mm billet compressor wheel (64 trim) capable of 850HP and reverse rotation design. 1.01 A/R V-band undivided turbine housing with 68/62mm turbine wheel, for counterclockwise engine configurations where standard clockwise turbos lack clearance.

Specifications

  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 1.01
  • Turbine Housing Type: Undivided V-band inlet and V-band outlet, Ni-Resist
  • Bearing System: Dual ball bearing
  • Rotation: Reverse rotation (counterclockwise)
  • HP Capacity: 850HP
  • Garrett P/N: 871389-5007S
Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “GEN2 – Garrett GTX3582R REVERSE Turbo with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the GTX3582R

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
