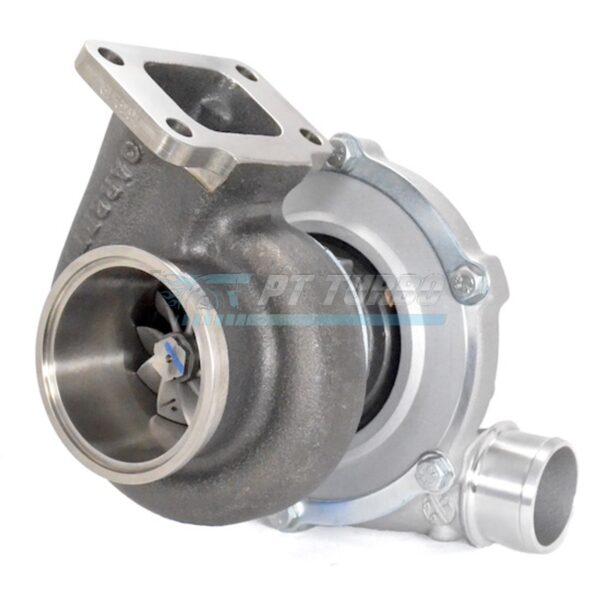

The Garrett GTX3576R GEN2 dual ball bearing turbocharger is built for serious Nissan SR20DET enthusiasts demanding a true top-mount solution that delivers both quick spool and serious top-end power. Paired with a .63 A/R T3 turbine housing featuring a 3″ GT VBAND conical exit and 81mm lip, this configuration is engineered for builders who want GEN2 billet wheel technology without compromise. This is the turbo of choice for those pushing their SR20DET platform toward its performance ceiling.

Specifications

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Compressor Housing Frame: T04E Frame, Ported Shroud
• Compressor Inlet: 4″
• Compressor Outlet: 2″
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: .63
• Turbine Housing Flange: T3
• Turbine Housing Exit: 3″ GT VBAND conical exit
• Turbine Housing Lip: 81mm
• Bearing System: Dual Ball Bearing
• HP Capacity: 750HP

Performance & Application

Designed around the GEN2 billet compressor wheel, this GTX3576R configuration is purpose-built for high-output SR20DET applications running a top-mount turbo layout. The dual ball bearing center cartridge delivers sharp throttle response and reduced turbo lag compared to journal bearing designs, while the .63 A/R T3 turbine housing balances quick spool with the flow capacity needed to reach serious power levels. The 3″ GT VBAND conical exit with 81mm lip simplifies downpipe fabrication and improves exhaust flow efficiency. This setup is ideal for SR20DET builds targeting maximum power without sacrificing daily drivability or response.

Compatibility & Fitment

• Nissan SR20DET
• Nissan SR20DET GTX T3 Top Mount applications

Frequently Asked Questions

What HP can the GTX3576R GEN2 support?

This turbocharger’s advanced GEN2 billet compressor wheel is capable of supporting up to 750HP.

Is this a ball bearing or journal bearing turbo?

The GTX3576R GEN2 is a dual ball bearing turbocharger.

What turbine housing A/R and flange does this use?

This turbo uses a .63 A/R T3 turbine housing.

What type of exit and lip does the turbine housing feature?

The turbine housing features a 3″ GT VBAND conical exit with an 81mm lip.

For SR20DET builders who demand GEN2 billet wheel performance backed by a proven ball bearing platform, the GTX3576R with .63 A/R T3 turbine housing delivers the response and top-end capability serious top-mount applications require.
