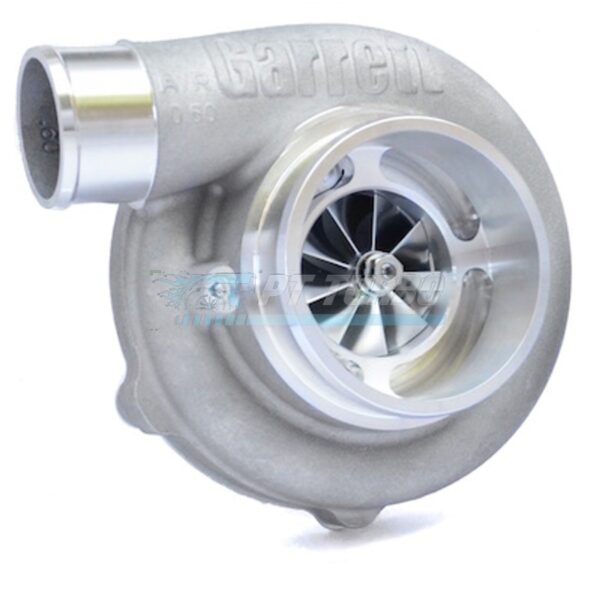

GEN2 – Garrett GTX3576R REVERSE Turbo with .83 A/R Garrett Undivided V-band Entry Turbine Housing

The Garrett GTX3576R GEN2 reverse rotation turbocharger is built for serious performance enthusiasts pushing high-displacement engines into elevated power territory. Paired with an undivided V-band entry turbine housing, this unit is engineered for builders who demand aggressive boost response without sacrificing top-end capability. It’s the choice for those who need a turbo that transitions seamlessly from spool to sustained power delivery on demanding builds.

Specifications

• Turbine Housing A/R Ratio: .83
• Turbine Housing Configuration: Undivided V-band entry
• Bearing Type: Ball bearing center section
• HP Capacity: 650+ hp
• Rotation: Reverse rotation
• Generation: GEN2
• Garrett P/N: 856803-5002S

Performance & Application

The GTX3576R is designed for high-displacement applications where aggressive boost response is a priority. Its ball bearing center section and optimized compressor geometry work together to deliver quicker spool characteristics compared to journal bearing alternatives, while the .83 A/R undivided V-band turbine housing is matched to support strong power delivery through the top end of the power band. With a capacity of 650+ hp, this turbo is suited for builders targeting a serious power upgrade without stepping into oversized frame territory. The reverse rotation configuration and GEN2 architecture make it a purpose-built option for specific platform and packaging requirements.

Frequently Asked Questions

What HP can the GTX3576R support?

The Garrett GTX3576R is rated for 650+ hp, making it suitable for high-displacement applications targeting a significant power increase.

Is this a ball bearing or journal bearing turbo?

The GTX3576R features a ball bearing center section, contributing to its aggressive boost response.

What is the A/R ratio of the turbine housing?

This turbo comes equipped with a .83 A/R Garrett undivided V-band entry turbine housing.

What type of turbine housing does this turbo use?

It uses a Garrett undivided V-band entry turbine housing configuration.

For builders who need proven ball-bearing response and 650+ hp capacity in a reverse rotation GEN2 platform, the Garrett GTX3576R with its .83 A/R undivided V-band turbine housing delivers the performance foundation your build demands.
