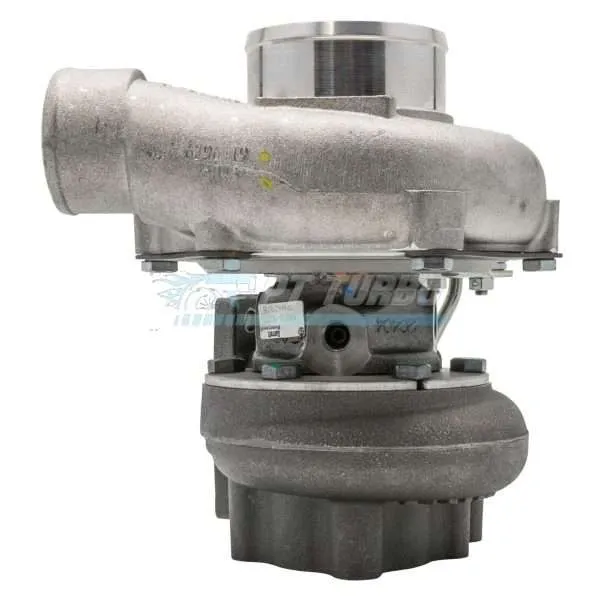

Garrett Turbocharger GT2871R – 836026-5021S

The Garrett GT2871R (836026-5021S) is a ball bearing, internally wastegated performance turbocharger, sold complete with its turbine housing and actuator. This unit directly replaces part numbers 743347-0004, 743347-4, 743347-5004, 743347-9004, 836026-0021, 836026-9021, and 12 more cross-reference numbers listed below. This is a new direct-fit replacement built to OEM specifications and backed by PT Turbo’s 12-month unlimited-mile warranty.

Garrett’s Published Specifications

• Power range: 280 to 475 horsepower, for engines of 1.8 to 3.0 liters
• Compressor wheel: 53 mm inducer, 71 mm exducer
• Compressor housing: 0.60 A/R
• Turbine wheel: 54 mm inducer, 47 mm exducer, 76 trim
• Turbine housing: 0.64 A/R, internally wastegated; Garrett’s 0.64 A/R wastegated housing for this frame has a T25 inlet and a 5-bolt outlet
• Bearings and cooling: ball bearing cartridge, water-cooled center housing
• Sister part: 836026-5020S is the same turbo with a 0.86 A/R turbine housing

These figures are Garrett’s own for this part number. Garrett sells its performance turbos for racing use; fitting one usually needs a matching manifold, piping and tuning.

Details

• Condition: New
• Brand: Garrett
• Component OEM: Garrett
• Model: GT2871R

Cross Reference
