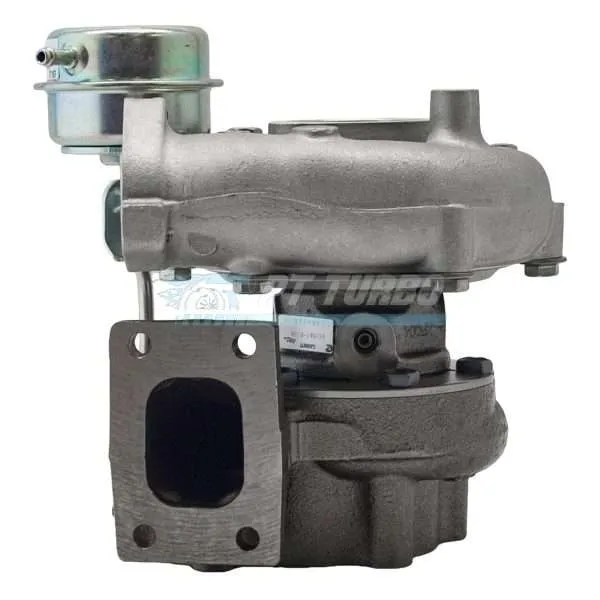

Garrett Turbocharger GT2560R – 836023-5004S

The Garrett GT2560R (836023-5004S) is a ball bearing, internally wastegated performance turbocharger, sold complete with its turbine housing and actuator. This unit directly replaces part numbers 14411-69F00, 14411-69F0D, 14411-91F00, 466541-0001, 466541-0004, 466541-1, and 28 more cross-reference numbers listed below. This is a new direct-fit replacement built to OEM specifications and backed by PT Turbo’s 12-month unlimited-mile warranty.

Garrett’s Published Specifications

• Power range: 200 to 330 horsepower in Garrett’s reference data for this part number (engines of 1.6 to 2.5 liters); the catalog’s headline range is 170 to 270 horsepower
• Compressor wheel: 46 mm inducer, 60 mm exducer
• Turbine wheel: 53 mm inducer, 42 mm exducer, 62 trim
• Turbine housing: 0.64 A/R, internally wastegated
• Bearings and cooling: ball bearing cartridge, water-cooled center housing

These figures are Garrett’s own for this part number. Garrett sells its performance turbos for racing use; fitting one usually needs a matching manifold, piping and tuning.

Details

• Condition: New
• Brand: Garrett
• Component OEM: Garrett
• Model: GT2560R

Cross Reference
