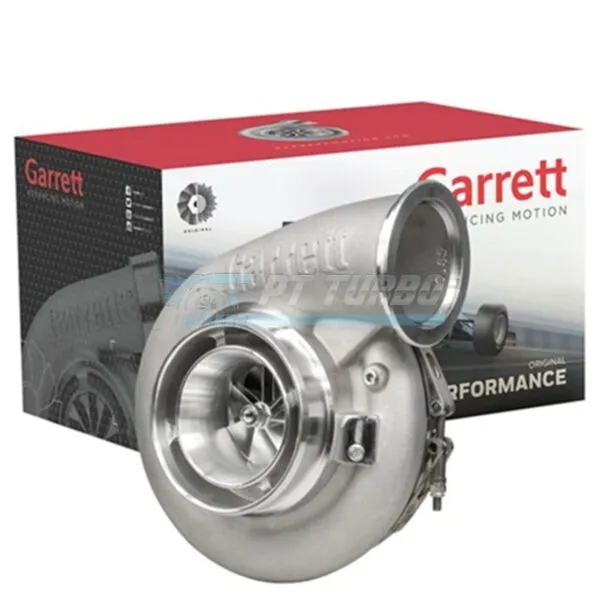

Garrett Supercore G-XRace GXR55-88mm GXRace 0.25″ PS 106TW, Class X275, PN: 934174-5007S

Specifications

• Compressor Wheel: 88mm
• Ported Shroud: 0.25″ PS
• Surge Slot Width: 0.25″
• Turbine Wheel: 106mm (full size)
• Class: X275
• Garrett P/N: 934174-5007S
• Also Known As: GX-Race55, GXR55-88

Wheels

• Compressor wheel: 88.9 mm inducer, 133 mm exducer
• Turbine wheel: 112 mm inducer, 106 mm exducer, 90 trim

These are the wheel sizes Garrett publishes for the GXR55-88 with the 0.25″ map groove supercore.

Downloads

• Garrett G-XRace GXR55-88 Product Flyer
