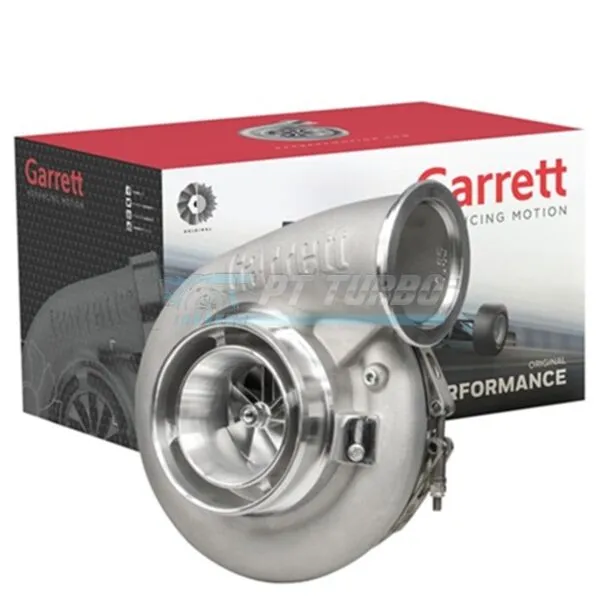

Garrett Supercore G-XRace GXR55-88mm GXRace 0.25″ PS 103TW, Class LDR, X275, PN: 934174-5001S

Specifications

• Product Line: Garrett G-XRace GX-Race55
• Model: GXR55-88mm
• Compressor Housing Feature: 0.25″ Ported Shroud Surge Slot Width
• Turbine Wheel: 103mm (103TW)
• Class Designation: LDR
• Application Class: X275
• Product Type: Supercore

Wheels

• Compressor wheel: 88.9 mm inducer, 133 mm exducer
• Turbine wheel: 112 mm inducer, 103 mm exducer, 86 trim

These are the wheel sizes Garrett publishes for the GXR55-88 with the 0.25″ map groove supercore.

Downloads

• Garrett G-XRace GXR55-88 Product Flyer
