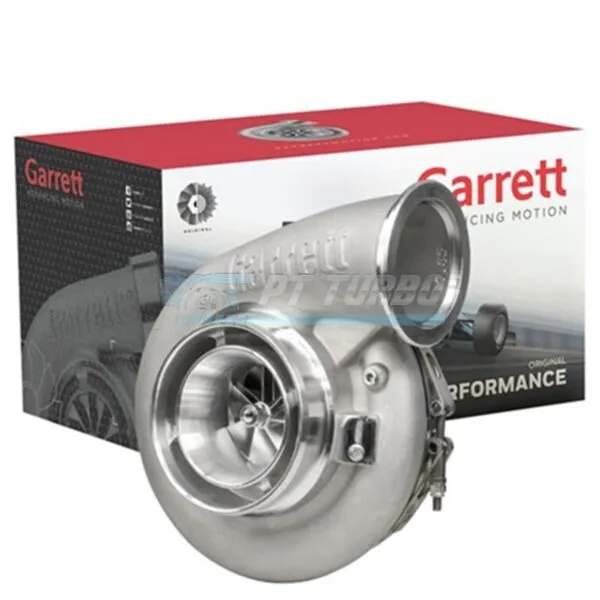

Garrett Supercore G-XRace GXR55-88mm GXRace 0.18″ PS 103TW, Class X275, PN: 934174-5008S

Specifications

• Model: GXR55-88mm GXRace
• Ported Shroud Surge Slot Width: 0.18″
• Turbine Wheel: 103mm (103TW)
• Class Rating: X275
• Product Line: GX-Race55
• Garrett P/N: 934174-5008S

Wheels

• Compressor wheel: 88.9 mm inducer, 133 mm exducer
• Turbine wheel: 112 mm inducer, 103 mm exducer, 86 trim

These are the wheel sizes Garrett publishes for the GXR55-88 with the 0.18″ map groove supercore.

Downloads

• Garrett G-XRace GXR55-88 Product Flyer
