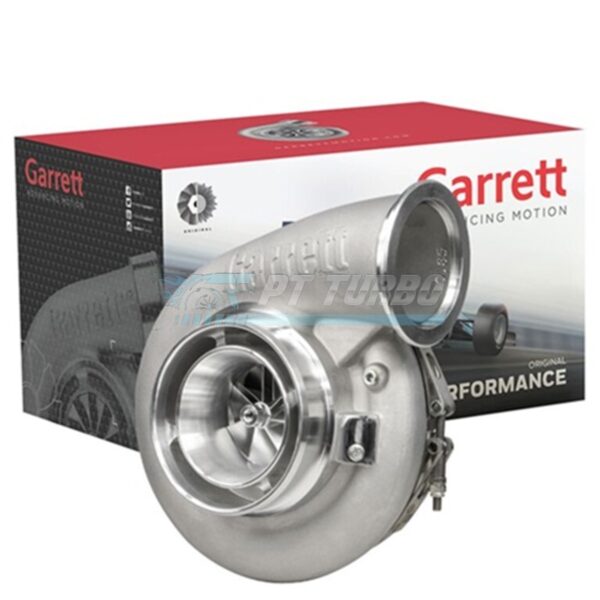

The Garrett Supercore G-XRace GXR50-76 is a race-bred core assembly built for extreme boost applications where compressor and turbine wheel matching must be dialed in with precision. Designed for engine builders and turbo specialists who intend to pair it with a turbine housing of their choosing, this supercore forms the heart of a high-output GX-Race50 turbocharger build. It’s the right choice for enthusiasts who demand genuine Garrett engineering at the core of a custom-configured, top-tier forced induction system.
Specifications
- Compressor Wheel Inducer: 76.6mm
- Compressor Wheel Exducer: 120mm (123mm extended tip)
- Compressor Housing A/R: 0.85
- Turbine Wheel Inducer: 99mm
- Turbine Wheel Exducer: 94mm
- Garrett P/N: 953234-5008S
Performance & Application
This supercore is engineered as the foundation of the GX-Race50 turbocharger platform, intended for builders assembling a complete turbo unit for extreme performance applications. A turbine housing must be added separately to complete the turbo assembly, and the G-XRace50 shares turbine housing compatibility with the G-Series G50 turbo, giving builders flexibility in sourcing a matching housing. This configuration is built for those who need precise control over turbine housing selection to tailor spool characteristics and top-end flow to their specific build goals.
Compatibility & Fitment
- Uses the same turbine housing as the Garrett G-Series G50 turbo
Frequently Asked Questions
- Does this supercore include a turbine housing?
- No. A turbine housing of your choice must be added to this supercore in order to complete a full turbo unit.
- What turbine housing is compatible with the GXR50-76 Supercore?
- The G-XRace50 uses the same turbine housing as the G-Series G50 turbo.
- What is the compressor housing A/R ratio?
- The compressor housing A/R ratio is 0.85.
- What are the compressor wheel dimensions?
- The compressor wheel has a 76.6mm inducer and a 120mm exducer, with a 123mm extended tip.
For builders who demand genuine Garrett core technology and the freedom to configure their own turbine housing setup, the Garrett Supercore G-XRace GXR50-76, P/N 953234-5008S, delivers the precision foundation a serious race build requires.
