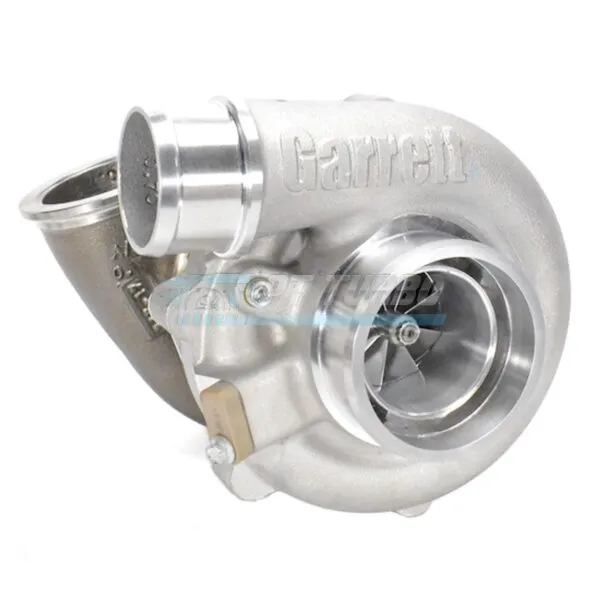

The Garrett G25-660 Reverse Rotation turbocharger paired with the stainless steel V-Band .72 A/R turbine housing is built for enthusiasts who demand small frame packaging without sacrificing top-end capability. Engineered for platforms that require reverse rotation flow, this unit delivers the advanced aerodynamics and thermal durability that define the G-Series lineup. It’s the choice for builders who need a compact, high-response turbocharger that can still make serious power.
Specifications
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
- Turbine Wheel Material: Mar-M Alloy, 1050 Celsius Rating
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Turbine Housing A/R: .72
- Bearing Type: Ball Bearing
- Rotation: Reverse Rotation
- HP Capacity: 660HP
- Frame Size: Small Frame
- Garrett P/N: 871390-5010S
- Alternate P/N: 871399-5002S, 740902-0073
Performance & Application
The G25-660 Reverse Rotation combines an ultra high flow G-Series compressor wheel with an evolutionary aero G-Series turbine wheel for maximum efficiency in a compact footprint. Its Mar-M alloy turbine wheel construction is designed to withstand extreme heat, ensuring durability under sustained high-load conditions. The small frame architecture allows for quick spool response while still supporting a 660HP power ceiling, making it well suited for builds that demand both responsiveness and top-end output. This configuration is ideal for enthusiasts running reverse
