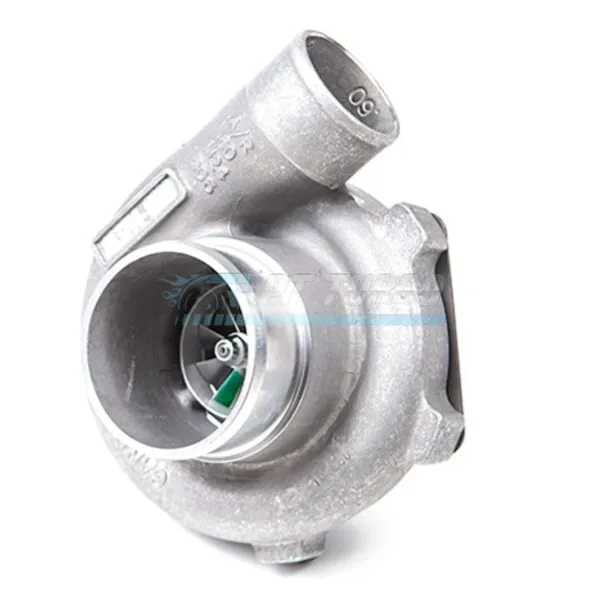

Name: Garrett GTX2967R Turbo including Turbine Housing
Brand: Garrett
SKU: PTT-TBO-504
Availability: InStock

Compressor Wheel Inducer: 49.7mm
Compressor Wheel Exducer: 67.4mm
Compressor Wheel Trim: 55
Turbine Wheel Inducer: 56.5mm
Turbine Wheel Exducer: 51.8mm
Turbine Wheel Trim: 84
Bearing Type: Dual Ball Bearing
HP Potential: 500HP potential flow
Compressor Housing: GT28 Style with 3″ inlet, 2″ outlet, and built-in & machined anti-surge
Turbine Housing Inlet: T25 flange
Turbine Housing Outlet: 5 bolt GT28 style flange
Turbine Housing A/R: .64 or .86 A/R (selectable)
Wastegate Configuration: Internally gated

Weight	20 lbs
Comp Hsg GTX67mm exducer	Standard, GT28 Style (3" Inlet with Anti-Surge and 2" Outlet) – STANDARD/DEFAULT, GT25R (aka GT2554R) Compact Frame, REMOVE Compressor Housing (-$25.00 Credit)
Polished Compressor Housing	Standard, SELECT for Polished Compressor Housing (+$75)
Select Turbine Housing A/R	Standard, .64 A/R T25 Inlet, 5 Bolt GT28 Outlet, Internally Gated, .86 A/R T25 Inlet, 5 Bolt GT28 Outlet, Internally Gated
Turbo Model	GTX2967R
