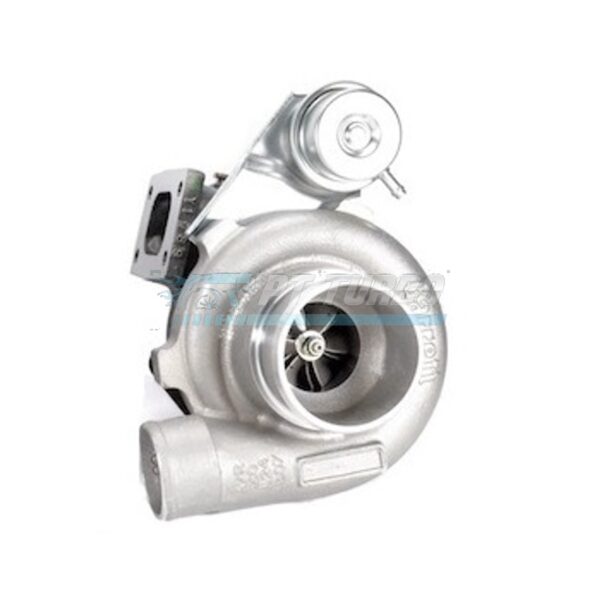

The Garrett GT2871R Ball Bearing Turbo in the standard 56 trim configuration is engineered for enthusiasts running small displacement engines who demand quick spool without sacrificing top-end flow. Its dual ball bearing core design delivers a level of throttle response that traditional journal bearing turbos can’t match, making it a favorite for builders chasing a stealthy but serious power upgrade. Whether you’re running the standard internally gated T25 housing or configuring a T3/T4 drop-in setup for an older platform, this unit is built to bolt in and perform.

Specifications

• Bearing Type: Dual Ball Bearing
• Compressor Wheel Inducer: 71mm
• Compressor Wheel Trim: 56 trim
• Compressor Housing A/R: .60 a/r
• Turbine Wheel: 53.85mm
• Turbine Wheel Trim: 76 trim
• Turbine Housing A/R: .86 or .64 a/r
• Turbine Inlet Flange (Standard): T25
• Turbine Housing Wastegate Configuration (Standard): Internally gated with internal wastegate actuator included
• Compressor Discharge: 5 bolt GT28 style
• Flow Capacity: Approximately 400HP
• Garrett P/N: 743347-5001S
• Alternate P/N: 743347-5002S, 743347-5003S, 743347-5004S, 743347-5001, 743347-5002, 743347-5003, 743347-5004, 743347-1, 743347-2, 743347-3, 743347-4

Performance & Application

This GT2871R is purpose-built for small displacement engines up to 2.2L, offering the ultimate spool-up time compared to other units in its class. Its external packaging is identical to that of the GT28RS, allowing enthusiasts to step up to roughly 400HP of flow capacity as a nearly invisible upgrade, without needing to re-arrange surrounding hardware. For applications requiring a retrofit into older T3-based turbine housing setups, an optional T3/T4 drop-in style turbine housing is available, supporting either internal or external wastegate configurations. This makes the GT2871R equally suited to a clean OEM-style up
