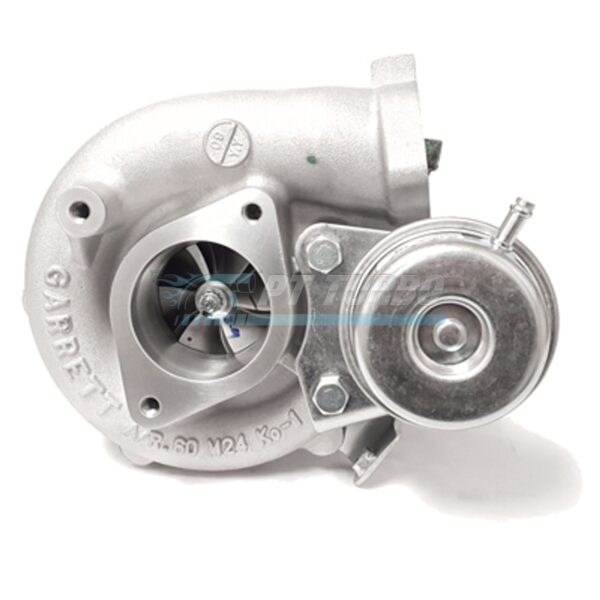

Built for Nissan SR20DET owners who want a serious jump in flow without reinventing their turbo system, this Garrett GT2871R with a GT28R style compressor housing and high pressure adjustable actuator delivers a true bolt-on upgrade path. It retains the familiar T25 style footprint many SR20 kits are built around while unlocking significantly more airflow than a stock-style GT28R. This is the turbo for enthusiasts who want stealthy packaging with real performance underneath.
Specifications
- Bearing System: Dual Ball Bearing
- Compressor Wheel Inducer: 71mm
- Compressor Trim: 52 trim
- Compressor Housing A/R: .60 ar
- Compressor Housing Inlet: 2 bolt inlet
- Compressor Housing Outlet: 3 bolt outlet
- Turbine Wheel: 53.85mm
- Turbine Trim: 76 trim
- Turbine Housing A/R: .86 or .64 ar
- Turbine Inlet Style: T25 style
- Wastegate Design: Internally wastegated
- Actuator: High pressure adjustable actuator, 12-14 psi
- Flow Capacity: Approximately 400HP
- Garrett P/N: 771847-5001S
- Alternate P/N: 836026-5012S
- Alternate P/N: 836026-5011S
- Alternate P/N: 472560-15
- Alternate P/N: 472560-5015S
- Alternate P/N: 771847-0001
- Alternate P/N: 771847-1
Performance & Application
This GT2871R configuration is designed for small displacement engines up to 2.2L, making it a strong match for the SR20DET platform. The dual ball bearing center section gives it the ultimate spool up time compared to other units, while the larger 71mm/52 trim compressor wheel and GT28R style housing push flow capacity well beyond typical GT28R output. The external packaging can be made to look identical to a stock GT28R when the GT28R style actuator is selected, allowing for a stealthy upgrade that steps up total flow potential without requiring a major re-arrangement of existing plumbing or mounting points. It’s an ideal choice for builders who want more headroom while keeping quick throttle response.
Compatibility & Fitment
- Nissan SR20DET compatible with GT28R style wastegate actuator
Frequently Asked Questions
- What HP can the GT2871R (52 trim, GT28R style housing) support?
- This turbo has a flow capacity of about 400HP.
- Is this a ball bearing or journal bearing turbo?
- It is a dual ball bearing GT2871R turbo.
- What compressor housing inlet and outlet does this use?
- The compressor housing uses a 2 bolt inlet and 3 bolt outlet.
- What turbine housing A/R options are available?
- The turbine housing is available in .86 or .64 A/R.
- What does the GT28RS style actuator option refer to?
- The GT28RS style actuator is available for kit applications where the end housings are similar, but the wastegate position is unique and the act
