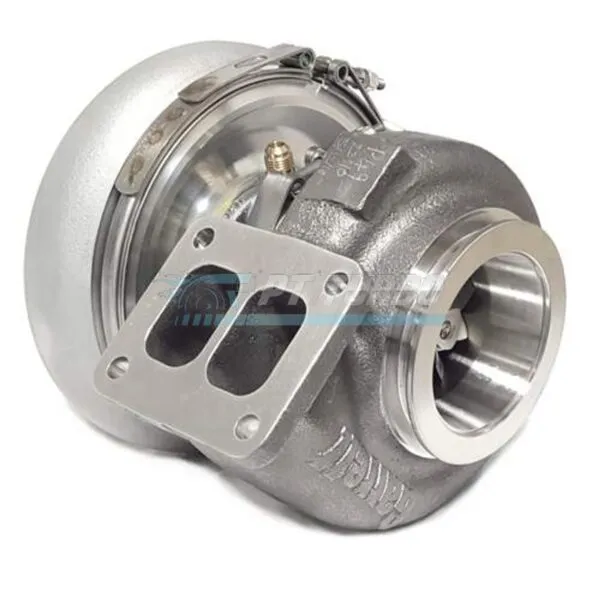

Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.01 A/R Turbine Housing

Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.01 A/R Turbine Housing

$4,520.57

Garrett G-Series G45-1500: 1500HP capability with 76mm compressor wheel (0.85 A/R housing), 89mm turbine wheel, and 1.01 A/R T4 divided turbine housing. Ball-bearing construction.

Specifications

  • Compressor Wheel Inducer: 76mm
  • Compressor Wheel Exducer: 109mm
  • Compressor Wheel Trim: 49
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 89mm
  • Turbine Wheel Exducer: 82mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: T4 Divided, 1.01 A/R
  • Bearing Type: Ball Bearing
  • HP Capacity: Up to 1500HP

Downloads

Weight 20 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett G-Series G45-1500 (76MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.01 A/R Turbine Housing”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G45-1500

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
