Garrett G-SERIES G25 CHRA G25-660-RR (REVERSE ROTATION), P/N: 871383-5002S

Garrett G-Series G25 CHRA G25-660-RR (Reverse Rotation), P/N: 871383-5002S

$1,850.55

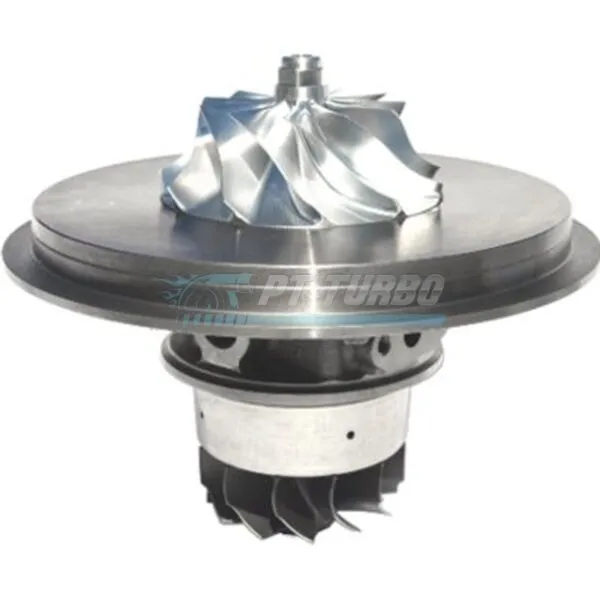

Center housing and rotating assembly (CHRA) for the Garrett G25-660, reverse rotation. Compressor wheel 54 / 67 mm, turbine wheel 54 / 49 mm. The compressor housing and the turbine housing are not included. Match the part number to your turbo before ordering.

Specifications

  • Rotation: Reverse Rotation (counter-clockwise boost delivery)
  • Bearing Type: Ball Bearing
  • HP Capacity: 660 hp
  • Product Type: CHRA (Cartridge)
  • Garrett P/N: 871383-5002S

Wheels

  • Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
  • Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim

These are the wheels of the Garrett G25-660, as published for the complete turbo. The CHRA is that turbo’s center section.

Weight 5 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett G-Series G25 CHRA G25-660-RR (Reverse Rotation), P/N: 871383-5002S”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G25-660

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
