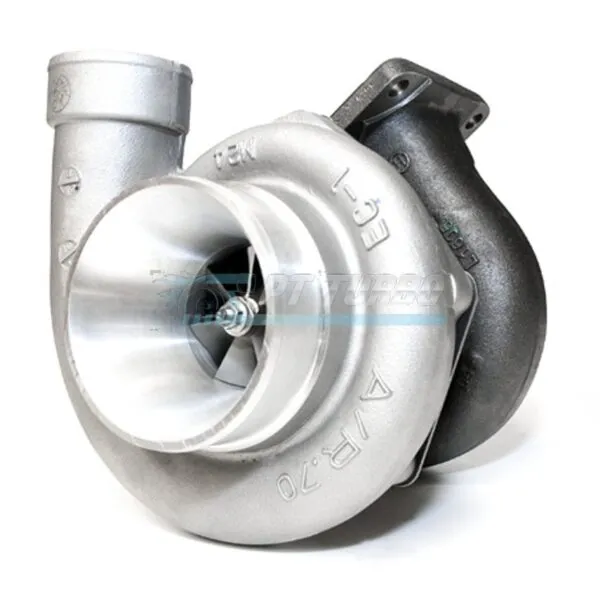

Built for enthusiasts chasing serious mid-range power without the lag of a larger frame turbo, the Garrett T3/60-1 journal bearing turbocharger pairs a 60-1 compressor wheel with a Stage III turbine wheel for a proven, high-output T3/T4 hybrid platform. This unit is ideal for builders who want a durable, oil-cooled turbo capable of supporting serious horsepower on a budget-conscious journal bearing design. It’s a trusted choice for street and strip applications where reliable spool and strong top-end power both matter.
Specifications
- Compressor Wheel: 60-1
- Compressor Housing: T04S
- Compressor Inlet: 4″
- Compressor Outlet: 2.5″
- Turbine Wheel: Stage III
- Turbine Housing: T31 4-bolt exhaust housing
- Available A/R Ratios: .48, .63, .82
- Bearing Type: Journal Bearing
- Cooling: Oil Cooled Only – NOT Watercooled
- Oil Feed/Drain: T3/4 oil feed flange and drain flange
- HP Capacity: 550 HP
- Garrett P/N: 715583-5005
- Alternate P/N: 715583-5006
- Alternate P/N: 715583-5007
Performance & Application
This T3/60-1 journal bearing turbocharger is engineered for builds targeting up to 550 horsepower, making it a strong fit for performance engines that need a reliable step up from stock or smaller turbo frames. The Stage III turbine wheel combined with the 60-1 compressor wheel delivers strong airflow through the T04S compressor housing, while the T31 four-bolt turbine housing keeps exhaust-side packaging compact and proven. Because this is an oil-cooled only design, it’s best suited for builders who have an appropriate oiling setup and are not looking for a watercooled bearing system. The available A/R ratio options allow tuners to dial in spool characteristics versus top-end power to match their specific power goals and driving style.
Frequently Asked Questions
- What HP can the Garrett T3/60-1 support?
- This turbocharger is rated to support up to 550 HP.
- Is this a ball bearing or journal bearing turbo?
- This is a journal bearing turbocharger.
- Is this turbo oil-cooled or watercooled?
- This unit is Oil Cooled Only and is NOT Watercooled.
- What A/R ratios are available for this turbo?
- This turbocharger is available with .48, .63, or .82 A/R ratios.
- What compressor inlet and outlet sizes does this turbo use?
- The T04S compressor housing features a 4″ inlet and a 2.5″ outlet.
For enthusiasts who need a dependable, high-flowing journal bearing turbo capable of supporting serious horsepower, the Garrett T3/60-1 with Stage III turbine wheel delivers a proven combination of compressor and turbine technology built for real-world performance.
