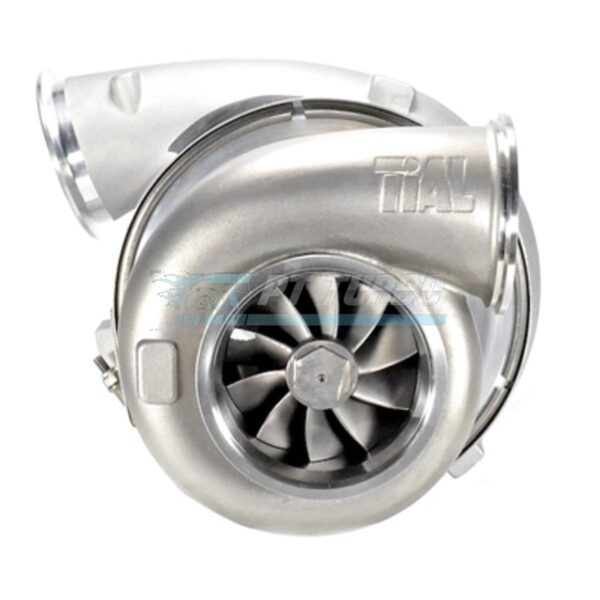

Turbocharger – Garrett GT4202R 102mm 1000 HP BALL BEARING, 1.30 A/R TiAL SS V-BAND HSG

The Garrett GT4202R is a ball bearing turbocharger built for enthusiasts chasing serious horsepower without sacrificing the durability demanded by extreme builds. With a large-frame compressor and turbine matched to a premium TiAL stainless steel V-band turbine housing, this unit is designed for high-boost applications where big power and reliability are non-negotiable. It’s the choice for builders who need a turbo capable of supporting massive output on a dedicated performance platform.

Specifications

• Compressor Wheel: 102mm
• Compressor Wheel Trim: 53 trim
• Turbine Wheel: 82mm
• Turbine Wheel Trim: 84 trim
• Turbine Housing A/R: 1.30
• Turbine Housing Material: TiAL Stainless Steel
• Turbine Housing Flange: V-Band
• Bearing Type: Ball Bearing
• HP Capacity: Approximately 1000 HP
• Garrett P/N: GT4202R

Performance & Application

The GT4202R is engineered for high-horsepower builds pushing toward the upper limits of performance, where a large compressor and turbine combination is required to sustain massive airflow. Its ball bearing design supports quick spool response relative to its size, while the substantial wheel dimensions allow it to deliver strong top-end power for builds targeting extreme output. The TiAL stainless steel V-band turbine housing adds durability and simplifies installation for serious performance applications. This turbocharger is best suited for dedicated high-horsepower builds where approximately 1000 HP capability is the goal.

Frequently Asked Questions

What HP can the GT4202R support?

The Garrett GT4202R is capable of approximately 1000 HP.

Is the GT4202R a ball bearing or journal bearing turbo?

The GT4202R is a ball bearing turbocharger.

What is the A/R ratio of the GT4202R turbine housing?

The GT4202R features a 1.30 A/R turbine housing.

What type of turbine housing flange does the GT4202R use?

The GT4202R uses a TiAL stainless steel V-band turbine housing.

For builders demanding extreme horsepower capability backed by ball bearing response and premium V-band durability, the Garrett GT4202R delivers the performance foundation serious builds require.
