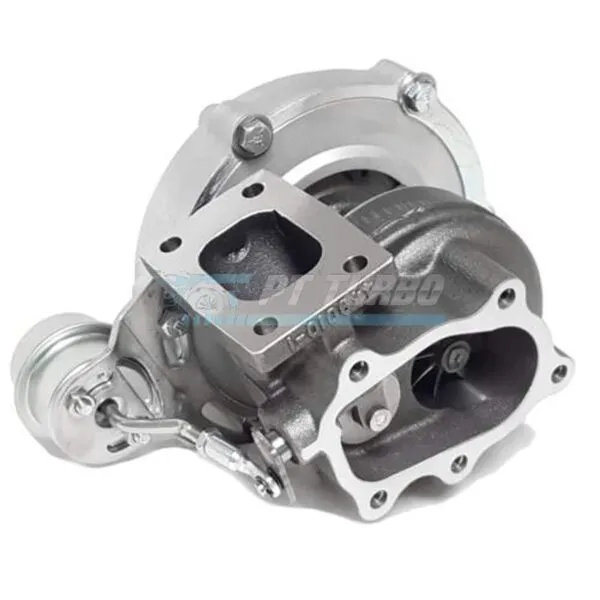

Turbocharger, Garrett GT2971R, T04B frame (GT28 size) Comp Hsg, 3" in/ 2' Out w/ 90 trim .86 A/R T25
Turbocharger, Garrett GT2971R, T04B frame (GT28 size) Comp Hsg, 3" in/ 2' Out w/ 90 trim .86 A/R T25
Turbocharger, Garrett GT2971R, T04B frame (GT28 size) Comp Hsg, 3" in/ 2' Out w/ 90 trim .86 A/R T25
Turbocharger, Garrett GT2971R, T04B frame (GT28 size) Comp Hsg, 3" in/ 2' Out w/ 90 trim .86 A/R T25

Turbocharger, Garrett GT2971R, T04B frame (GT28 size) Comp Hsg, 3″ in/ 2′ Out w/ 90 trim .86 A/R T25

$1,365.00

Garrett GT2971R (P/N 465541-5006S) dual ball bearing turbo with 53.1/71mm compressor (56 trim) and 56.5/52mm turbine (90 trim, .86 A/R). Rated to 450HP, for up to 2.2L engines with T04B T25 internal wastegate housing.

Specifications

  • Frame Size: T04B (GT28 size)
  • Compressor Wheel Inducer: 53.1mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing Inlet/Outlet: 3″ in / 2″ out
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 52mm
  • Turbine Wheel Trim: 90
  • Turbine Housing A/R: .86 A/R
  • Turbine Flange: T25
  • Wastegate Type: Internal wastegate, 14 PSI
  • Bearing Type: Dual ball bearing CHRA rotating assembly
  • Compressor Wheel Material: Genuine Garrett GT Aero compressor wheel
  • Turbine Wheel Material: Genuine Garrett GT Inconel turbine wheel
  • HP Capacity: Flow capacity of about 450HP
  • Garrett P/N: 465541-5006S
Weight 20 lbs
