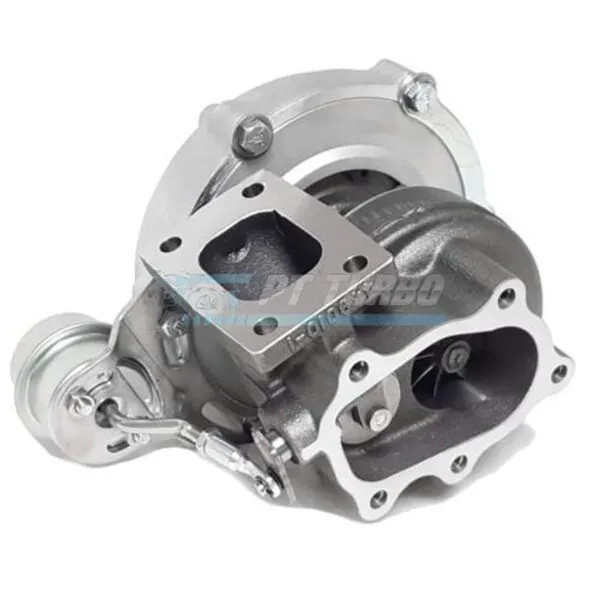

Turbocharger, Garrett GT2971R, T04B frame Comp Hsg, 3" in/ 2" Out w/ 84 trim .64 A/R T25 Int. Wgt
Turbocharger, Garrett GT2971R, T04B frame Comp Hsg, 3" in/ 2" Out w/ 84 trim .64 A/R T25 Int. Wgt
Turbocharger, Garrett GT2971R, T04B frame Comp Hsg, 3" in/ 2" Out w/ 84 trim .64 A/R T25 Int. Wgt
Turbocharger, Garrett GT2971R, T04B frame Comp Hsg, 3" in/ 2" Out w/ 84 trim .64 A/R T25 Int. Wgt

Turbocharger, Garrett GT2971R, T04B frame Comp Hsg, 3″ in/ 2″ Out w/ 84 trim .64 A/R T25 Int. Wgt

$1,365.00

Garrett GT2971R dual ball bearing turbo flows ~450HP with 56-trim compressor and 84-trim .64 A/R turbine housing. T04B frame with 3″/2″ ports and T25 internal wastegate for small displacement engines up to 2.2L.

Specifications

  • Frame Size: T04B (GT28 size)
  • Bearing Type: Dual Ball Bearing
  • Compressor Wheel Inducer: 53.1mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing Inlet/Outlet: 3″ in / 2″ out
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 52mm
  • Turbine Wheel Trim: 84
  • A/R Ratio: .64
  • Turbine Housing Style: T25 Internal Wastegate (14 PSI)
  • HP Capacity: ~450HP
  • Model: GT2971R
Weight 20 lbs
