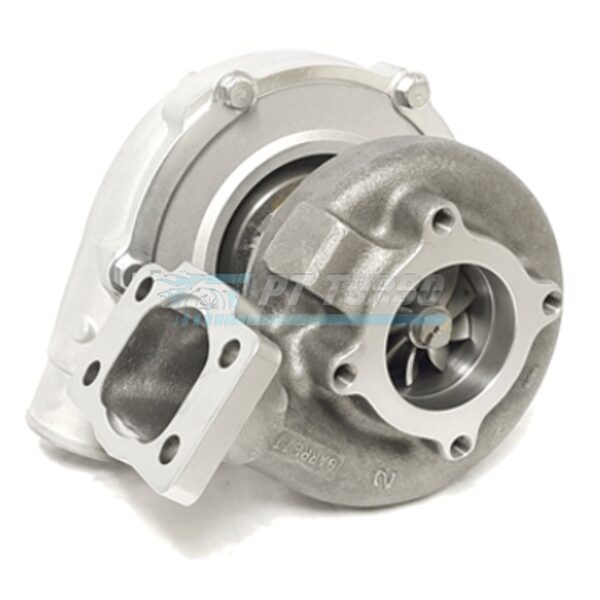

The Garrett GT2871 Anti-Surge turbocharger with the Audi K24/K26 flanged turbine housing is engineered for Audi 5-cylinder 2.3L platform owners who want a direct-fit upgrade without the hassle of custom fabrication. Built on Garrett’s proven anti-surge compressor technology, it’s the choice for enthusiasts chasing serious power while retaining factory-style bolt-up simplicity. This is a drop-in solution for those ready to move beyond stock turbo limitations.

Specifications

• Compressor Wheel Inducer: 53.1mm
• Compressor Wheel Exducer: 71mm
• Compressor Wheel Trim: 56
• Compressor Housing A/R: 0.60
• Compressor Inlet: 3″
• Compressor Outlet: 2″
• Turbine Wheel Inducer: 53.9mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Turbine Housing A/R: .63
• Turbine Housing Flange: Audi K24/K26 Flanged
• HP Potential: 450+HP

Performance & Application

This GT2871 Anti-Surge is purpose-built as a drop-in turbo for the Audi 5-cylinder 2.3L engine equipped with the K24/K26 turbine flange, eliminating the need for adapter housings or custom turbine matching. The anti-surge compressor design supports strong flow characteristics suited to enthusiasts pushing well beyond stock power levels. With its flow potential rated for 450+HP, this turbo is built for serious performance builds looking to extract significant gains from the factory-flanged platform. It’s the right call for owners who want a straightforward upgrade path that bolts into the existing K24/K26 turbine housing footprint.

Compatibility & Fitment

• Audi 5 cylinder 2.3L engines with K24/K26 turbine flange

Frequently Asked Questions

What HP can the GT2871 Anti-Surge support?

This turbocharger has 450+HP potential flow.

What is the compressor housing A/R ratio?

The compressor housing A/R is 0.60.

What is the turbine housing A/R ratio?

The turbine housing uses a .63 A/R.

What vehicles is this turbo compatible with?

This is a drop-in turbo for the Audi 5 cylinder 2.3L engine with the K24/K26 flange.

For Audi 5-cylinder 2.3L owners running the K24/K26 flange, this GT2871 Anti-Surge delivers a genuine drop-in path to 450+HP potential without compromise.
