Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.45 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.45 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.45 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.45 A/R V-band Turbine Housing

Turbocharger, Garrett Gen2 GTX4709R – 80mm with a TiAL 1.45 A/R V-band Turbine Housing

$4,795.00

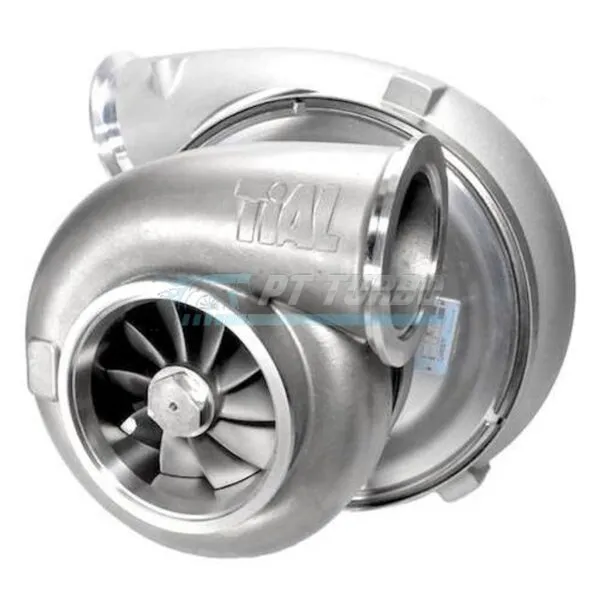

Garrett Gen2 GTX4709R dual ball bearing turbo featuring 80mm compressor wheel (54 trim), 93mm turbine wheel (82 trim), and TiAL 1.45 A/R V-band stainless turbine housing, for high-boost applications.

Specifications

  • Compressor Wheel Inducer: 80mm
  • Compressor Wheel Exducer: 109mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 93mm
  • Turbine Wheel Exducer: 84mm
  • Turbine Wheel Trim: 82
  • Turbine Housing A/R: 1.45
  • Turbine Housing Flange Type: V-band
  • Turbine Housing Material: Stainless
  • Bearing Type: Dual Ball Bearing
Weight 20 lbs
