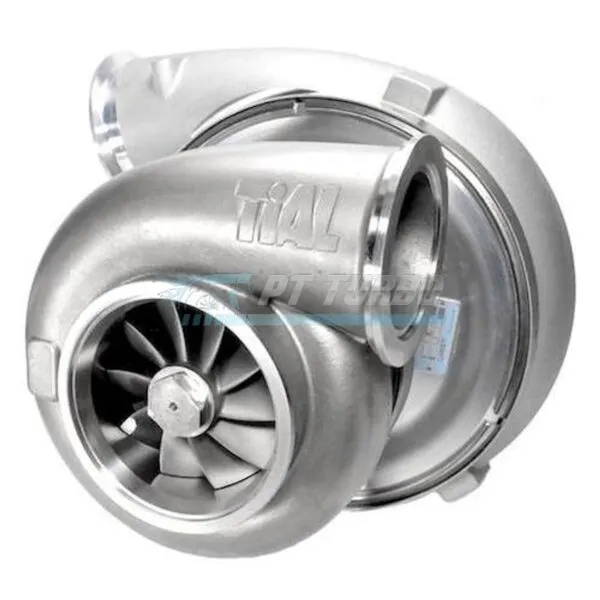

Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 80mm with a TiAL 1.31 A/R V-band Turbine Housing

Turbocharger, Garrett Gen2 GTX4709R – 80mm with a TiAL 1.31 A/R V-band Turbine Housing

$4,795.00

Garrett Gen2 GTX4709R dual ball bearing turbo features an 80mm compressor inducer (109mm exducer, 54 trim) and 93mm turbine inducer with TiAL 1.31 A/R V-band housing, for high-boost applications.

Specifications

  • Compressor Wheel Inducer: 80mm
  • Compressor Wheel Exducer: 109mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 93mm
  • Turbine Wheel Exducer: 84mm
  • Turbine Wheel Trim: 82
  • Turbine Housing A/R: 1.31
  • Turbine Housing Material: Stainless
  • Turbine Housing Flange: TiAL V-band
  • Bearing Type: Dual Ball Bearing
Weight 20 lbs
