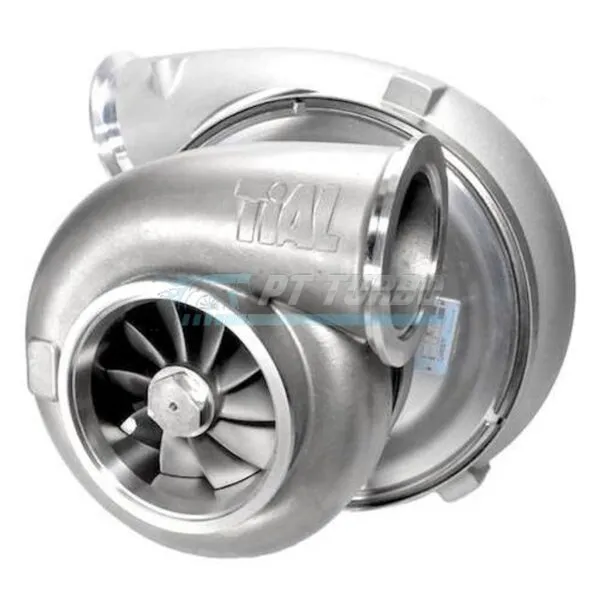

Turbocharger, Garrett Gen2 GTX4709R - 76mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 76mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 76mm with a TiAL 1.31 A/R V-band Turbine Housing
Turbocharger, Garrett Gen2 GTX4709R - 76mm with a TiAL 1.31 A/R V-band Turbine Housing

Turbocharger, Garrett Gen2 GTX4709R – 76mm with a TiAL 1.31 A/R V-band Turbine Housing

$4,795.00

Gen2 dual ball bearing turbocharger featuring 76mm compressor inducer with 54-trim wheel and 93mm turbine inducer. TiAL 1.31 A/R stainless V-band turbine housing for high-output applications.

Specifications

  • Compressor Wheel Inducer: 76mm
  • Compressor Wheel Exducer: 109mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 93mm
  • Turbine Wheel Exducer: 84mm
  • Turbine Wheel Trim: 82
  • Turbine Housing A/R Ratio: 1.31
  • Turbine Housing Flange: V-band
  • Turbine Housing Material: Stainless (TiAL)
  • Bearing System: Dual ball bearing
  • Model: GTX4709R
  • Also Known As: GTX4709R-76mm
Weight 20 lbs
