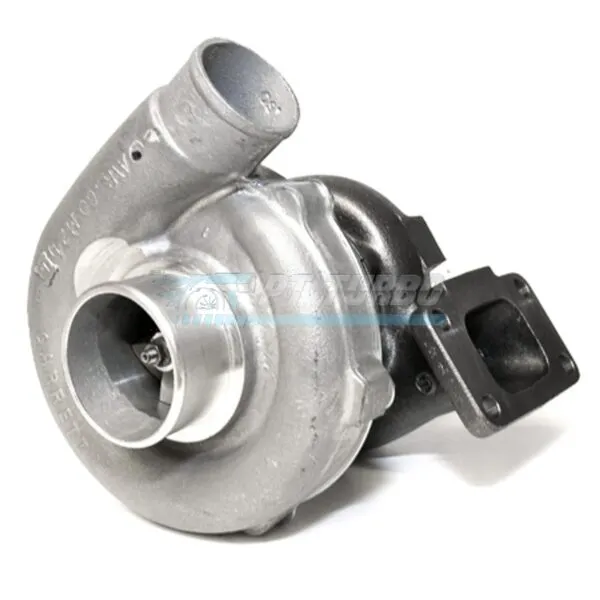

Built for enthusiasts chasing serious horsepower without sacrificing throttle response, this Garrett dual ball bearing T3/T4E turbocharger pairs a high-flowing 57 trim compressor with a durable Stage III turbine wheel. It’s engineered for builders who demand consistent boost delivery and long-term reliability in high-performance applications. Whether you’re building a street/strip setup or a serious track platform, this turbo is designed to deliver.
Specifications
- Bearing Type: Dual ball bearing
- Compressor Trim: T04E 57 trim
- Compressor Inlet: 3″
- Compressor Outlet: 2″
- Turbine Wheel: Stage III turbine wheel
- Turbine Flange: T31 4 bolt
- Oil Inlet Fitting: ATP-OIL-021
- Drain Flange: T3/4 drain flange
- Coolant Requirement: Coolant in/out required, 14mm threads (same as GT series ball bearing)
- HP Capacity: Up to 450HP
- Available A/R Ratios: .48, .63, .82 (standard)
- Special A/R Option: .72 A/R (Special T25 EWG-44)
- Special A/R Option: .72 A/R (For Cosworth housing)
- Alternate Turbine Housing Option: T3/T4 5 bolt (Ford style) discharge (only .63 or .82 available)
- Alternate Turbine Housing Option: Special Turbine Housing T25-EWG-44
- Alternate Turbine Housing Option: Special Turbine Housing – Cosworth style T3 inlet with 3 bolt outlet
Performance & Application
This Garrett T3/T4E ball bearing turbo is engineered for builders targeting up to 450 horsepower with the added durability and spool advantage of a dual ball bearing center section. The 57 trim compressor and Stage III turbine wheel combination is tuned for strong mid-range response while maintaining top-end flow for aggressive power builds. Selectable A/R ratios allow tuners to dial in the exact balance of spool-up and top-end power for their specific application. Optional alternate turbine housings, including Ford-style 5 bolt discharge and Cosworth-style configurations, provide added flexibility for custom exhaust manifold setups.
Frequently Asked Questions
- What HP can this turbo support?
- This Garrett T3/T4E ball bearing turbocharger is rated to support up to 450HP.
- Is this a ball bearing or journal bearing turbo?
- This is a dual ball bearing Garrett T3/T4E turbocharger.
- What compressor inlet and outlet sizes does this turbo use?
- It features a 3″ compressor inlet and a 2″ compressor outlet.
- What A/R ratios are available for this turbo?
- Standard A/R options include .48, .63, and .82, with a special .72 A/R available for the T25 EWG-44 or Cosworth-style housing.
- What are the coolant requirements for this turbo?
- Coolant in/out is required, using 14mm threads — the same specification as GT series
