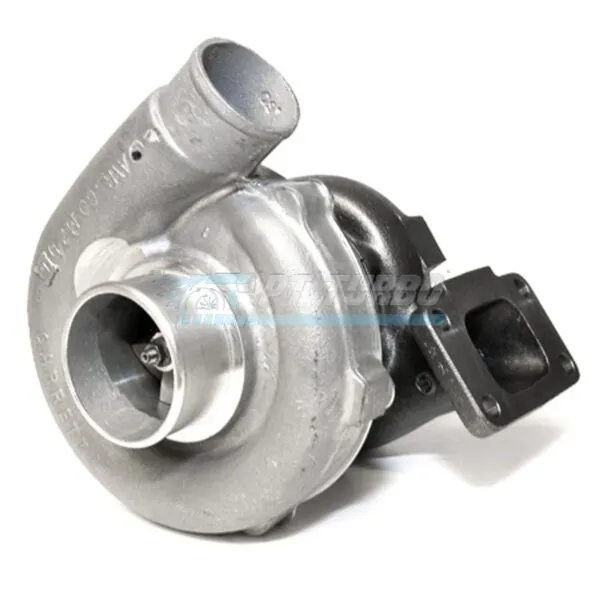

Turbocharger, Garrett **Ball Bearing**, T3/T4E 50 Trim Compressor

Specifications

• Bearing Type: Dual ball bearing
• Compressor Wheel: T04E 50 trim
• Compressor Inlet: 3″
• Compressor Outlet: 2″
• Turbine Wheel: Stage III
• Turbine Housing Mounting: T31 4 bolt
• Drain Flange: T3/4
• Coolant Requirement: Coolant in/out required, 14mm threads (same as GT series ball bearing)
• HP Capacity: 450HP
• Available Turbine A/R Ratios: .48, .63, .82
• Special A/R Option: .72 A/R (only available on Special T25 EWG-44)
• Special A/R Option (Cosworth): .72 A/R (for Cosworth housing)
• Alternate Turbine Housing Option: T3/T4 5 bolt (Ford style) discharge, available in .63 or .82 A/R only
• Alternate Turbine Housing Option: Special Turbine Housing T25-EWG-44
• Alternate Turbine Housing Option: Special Turbine housing – Cosworth style T3 inlet with 3 bolt outlet
• Additional Option: Anti-Surge Option available

Matching parts (sold separately)

• Oil Inlet Fitting

Call (909) 824-1020 and we add these matching parts to your order.
