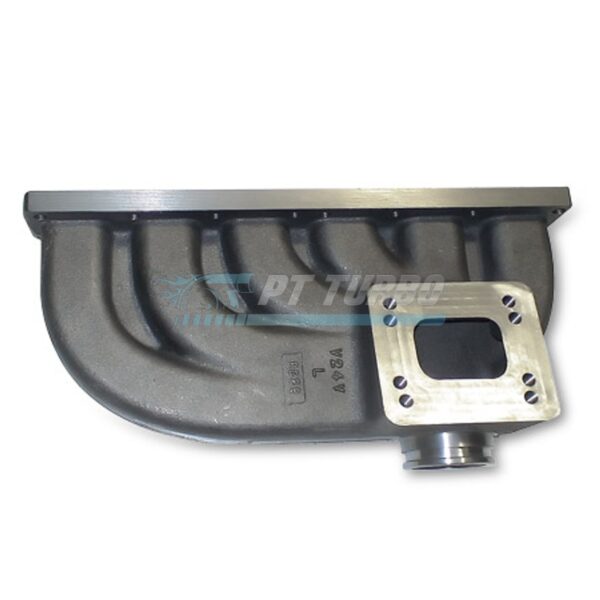

Turbo Manifold for 2002 to 2005 24V VR6 FWD and 3.2L R32 AWD

This turbo manifold is purpose-built for VR6 and R32 owners who demand a single-manifold solution capable of scaling from mild bolt-on power to serious four-digit-adjacent turbo setups. Designed for the 24V VR6 platform, it bridges the gap between stock-turbo simplicity and big-turbo ambition without requiring a manifold swap down the road. Whether you’re building a daily-driven sleeper or a dedicated track car, this manifold is engineered to grow with your build.

Specifications

• Material: Cast iron
• Turbine Flange: Dual T3 and T4 flanged
• Wastegate Flange: Tial 44mm V-band (external wastegate)
• Turbo Placement: Underside mount
• Compatible Turbo Models: T3/T4
• Compatible Turbo Models: T04
• Compatible Turbo Models: GT3071R
• Compatible Turbo Models: GT3076R
• Compatible Turbo Models: GT3582R
• Compatible Turbo Models: GT4088R
• Compatible Turbo Models: GT4094R
• HP Capacity: 700 to 800HP (with GT4088R/GT4094R series)
• Drive Configuration Compatibility: Left hand drive (LHD) and right hand drive (RHD)

Performance & Application

Built around a dual T3 and T4 flange design, this manifold accommodates everything from responsive mid-frame turbos through the largest 700-800HP-capable units in the Garrett lineup, giving builders room to plan for future upgrades without changing manifolds. The underside turbo placement keeps the setup low and compact, allowing the stock heat shield to remain in place with only a minor notch needed to clear the external wastegate flange. This makes it equally suited to daily-driven street cars looking for a moderate power bump and dedicated builds chasing big-turbo power on the top end. Its dual flange versatility and external wastegate provisions make it a long-term platform piece rather than a one-turbo solution.

Compatibility & Fitment

• 2002 to 2005 24V VR6 Front Wheel Drive Golf
• 2002 to 2005 24V VR6 Front Wheel Drive Jetta
• 2002 to 2005 24V VR6 Front Wheel Drive GTI
• 2002 to 2005 24V VR6 Front Wheel Drive GLI
• MKIV R32 3.2L VR6 AWD

Frequently Asked Questions

What turbos can this manifold run?

The manifold is T3 and T4 flanged, supporting a wide range of Garrett turbos including T3/T4, T04, GT3071R, GT3076R, GT3582R, and the larger GT4088R/GT4094R series.

What horsepower can this manifold support?

When paired with the GT4088R/GT4094R series turbos, this manifold has plenty of room to support 700 to 800HP.

Does this manifold accommodate an external wastegate?

Yes, it is equipped with a Tial 44mm V-band flange for use with an external wastegate.

Can I keep my stock heat shield with this manifold?

Yes
