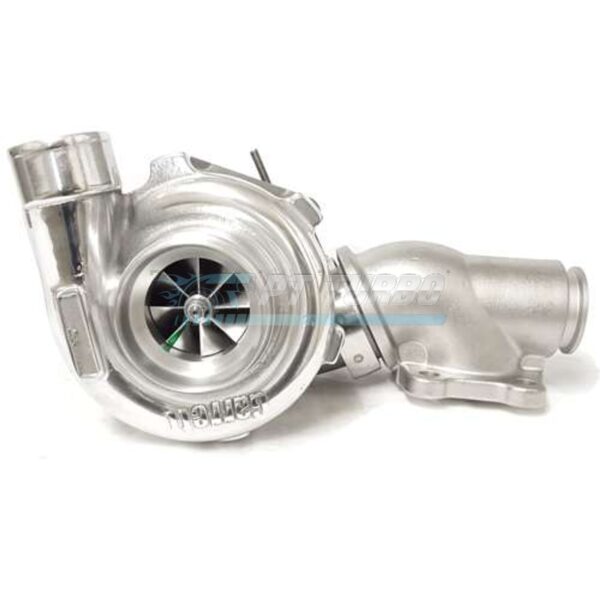

Built for Focus ST owners who want a substantial leap in power without disturbing the factory turbo location, this Gen2 GTX3076R kit is engineered as a true bolt-on solution for the 2.0L EcoBoost platform. It’s the choice for enthusiasts chasing serious top-end power while retaining stock-location simplicity and an externally wastegated setup. New cast stainless steel adapters round out this upgraded kit, making it a refined, direct replacement for the outgoing turbo.

Specifications

• Compressor Wheel Inducer: 58mm
• Compressor Wheel Exducer: 76mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 60mm
• Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
• Turbine Housing A/R: .63 A/R (standard); .82 A/R available as an optional configuration
• HP Potential: 750 HP
• Turbine Adapter Flange: V-band flanged turbo adapter (Stainless Steel)

Performance & Application

This Gen2 GTX3076R k

Downloads

• Focus ST ATP TurboUpgrade Install
