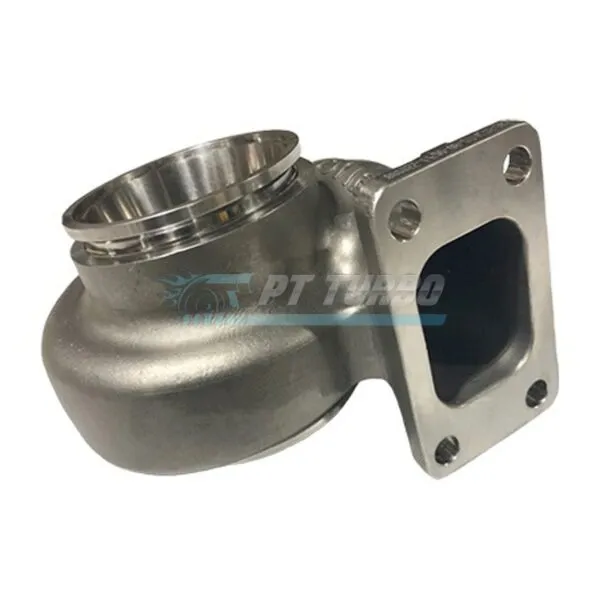

Turbine Housing Kit, Garrett G35 STANDARD ROTATION, 1.01 A/R O/V, T3 In/VB Out, P/N: 740902-0107

The Garrett G35 Standard Rotation Turbine Housing Kit is engineered for enthusiasts building high-performance turbo systems around the G-Series II G35 platform. Designed for those who demand precise, repeatable turbine-side performance, this housing kit delivers Garrett’s engineering standard in an open, undivided configuration. It’s the right choice for builders who need a proven, well-documented housing to pair with their G35 turbocharger setup.

Specifications

• A/R Ratio: 1.01 O/V
• Turbine Inlet: T3 (Open/Undivided)
• Turbine Outlet: V-Band
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Rotation: Standard Rotation
• Garrett P/N: 740902-0107

Performance & Application

This turbine housing kit is built for the Garrett G35 series turbocharger, giving performance builders a standard rotation option with an open T3 inlet and V-Band outlet for streamlined exhaust routing. The 1.01 A/R O/V configuration is matched to the 68mm inducer, 62mm exducer, 84-trim turbine wheel, delivering a balance between responsive spool characteristics and strong top-end flow. This housing kit is suited for enthusiasts and shops constructing custom G35 turbo systems who require Garrett’s exact factory turbine-side geometry. It’s a foundational component for builds where precise, engineered turbine flow characteristics are non-negotiable.

Frequently Asked Questions

What is the A/R ratio of this G35 turbine housing?

This turbine housing kit features a 1.01 A/R O/V configuration.

What inlet and outlet configuration does this housing use?

It uses an open (undivided) T3 inlet with a V-Band outlet.

Is this a standard or reverse rotation housing?

This is a Standard Rotation turbine housing kit.

What turbine wheel specifications correspond to this housing?

The housing is designed around a turbine wheel with a 68mm inducer, 62mm exducer, and 84 trim.

For builders committed to the Garrett G35 platform, this Standard Rotation turbine housing kit delivers the exact factory-engineered turbine-side specifications needed for a properly matched, high-performing turbo system.
