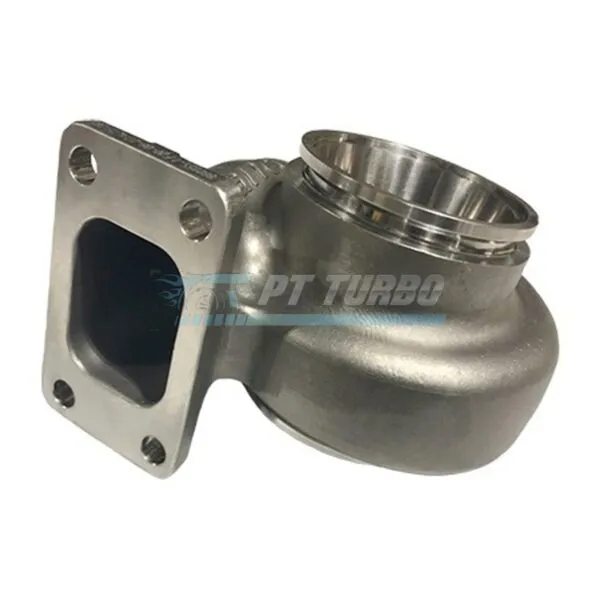

Turbine Housing Kit, Garrett G35 REVERSE ROTATION, 0.83 A/R O/V, T3 In/VB Out, P/N: 740902-0116

The Garrett G35 Reverse Rotation Turbine Housing Kit is engineered for builders running reverse rotation G35 turbochargers who demand precise, high-flow exhaust-side matching without compromise. This kit is built for enthusiasts and shops constructing custom turbo systems where mirrored compressor and turbine orientation is required. Backed by genuine Garrett engineering, it delivers the aggressive spool characteristics and flow capacity that serious performance builds demand.

Specifications

• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• A/R Ratio: 0.83 O/V
• Housing Configuration: Open (undivided)
• Inlet Flange: T3
• Outlet Flange: V-Band
• Rotation: Reverse Rotation
• Garrett P/N: 740902-0116

Performance & Application

This turbine housing is designed for Garrett G35 reverse rotation turbocharger builds seeking high-flow performance with quick transient response. The 84-trim, 68mm/62mm turbine wheel combination paired with a 0.83 A/R delivers aggressive spooling characteristics well-suited to high-performance applications. The open (undivided) design combined with the T3 inlet and V-band outlet configuration accommodates custom turbo system builders requiring flexible, high-flow exhaust housing solutions. This kit is ideal for enthusiasts building reverse rotation setups where precise flow characteristics and rapid response are priorities.

Frequently Asked Questions

What A/R ratio does this turbine housing kit use?

This kit features a 0.83 A/R, Open (undivided) O/V configuration.

What inlet and outlet configuration does this housing feature?

It uses a T3 inlet with a V-band outlet design, accommodating high-flow applications.

What turbine wheel size and trim does this housing accommodate?

The housing is matched to a turbine wheel with a 68mm inducer, 62mm exducer, and 84 trim.

Is this a standard or reverse rotation turbine housing?

This is a Garrett G35 Reverse Rotation turbine housing kit.

For builders running reverse rotation G35 turbochargers, this genuine Garrett turbine housing kit delivers the exact flow characteristics and aggressive spool behavior needed to maximize a high-performance build.
