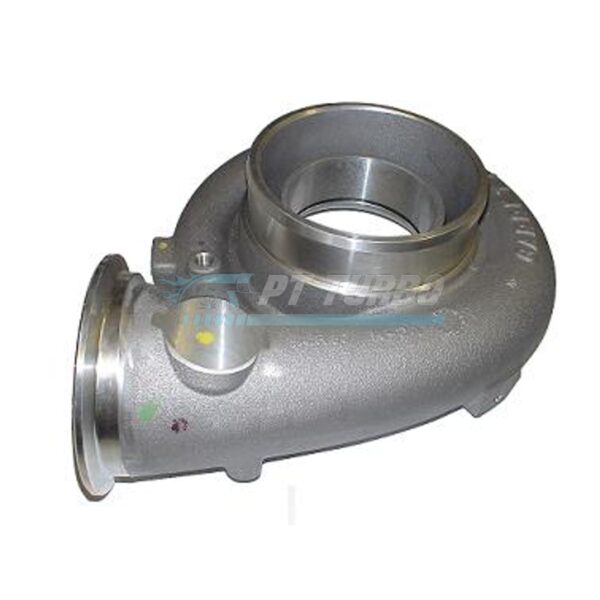

This Standard Large Frame compressor housing is purpose-built for the Garrett GTX4202R, giving serious turbo builders a high-flow housing solution engineered around a V-band compressor outlet. It’s designed for enthusiasts and shops running the 62mm GTX-R platform who need a housing configuration that matches their intake plumbing and airflow goals. If you’re building a GTX4202R setup that demands maximum flow efficiency, this housing is the correct foundation.

Specifications

• Compressor A/R Ratio: .60
• Frame Style: Large frame (high flowing)
• Compressor Inlet Size: 5″
• Compressor Outlet Type: V-band
• V-band Ring OD: 4.5″
• V-band Tube Size: 3.5″
• Inlet Feature: Cast-in ported shroud (anti-surge)
• Designed For: Garrett GTX4202R

Performance & Application

This housing is engineered specifically around the GTX4202R, a 62mm turbo platform built for high-output applications where flow capacity matters. The large frame, high-flowing design paired with the cast-in ported shroud helps manage compressor surge while supporting the airflow demands of a serious build. The V-band outlet configuration is intended for builders running V-band compressor discharge plumbing, with a flange/adapter set available separately for those wanting to convert to a hose connection. This housing is available with an optional speed sensor port and an optional polished finish for builders who want additional functionality or a refined appearance.

Compatibility & Fitment

• Garrett GTX4202R

Frequently Asked Questions

What A/R ratio does this compressor housing use?

This housing is configured with a .60 A/R ratio.

What size is the compressor inlet?

The compressor inlet measures 5″.

What outlet configuration does this housing use?

It uses a V-band compressor outlet with a 4.5″ ring OD and a 3.5″ tube size. A v-band flange/adapter set is available separately to convert to a hose connection.

What turbo is this compressor housing designed for?

This housing is designed for the Garrett GTX4202R.

Does this housing include any anti-surge features?

Yes, it features a cast-in ported shroud on the inlet for anti-surge performance.

For builders running a Garrett GTX4202R and demanding a large frame, high-flow compressor housing with V-band outlet capability, this is the precise, correctly matched component for the job.
