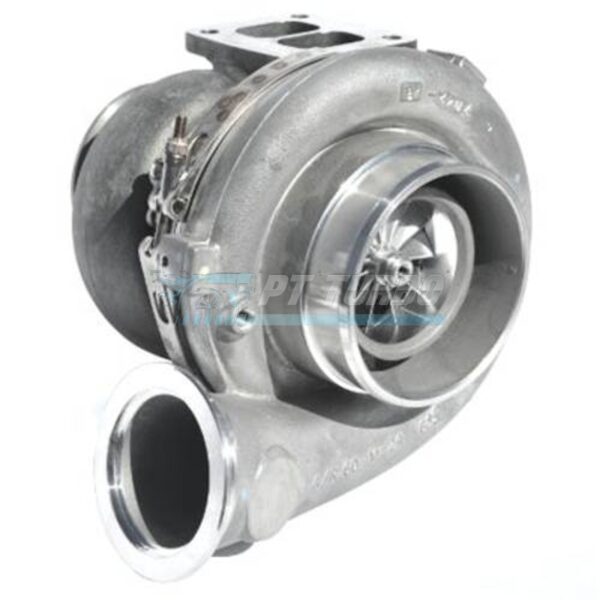

Name: *SPECIAL* GTX4502R - 67mm (67.8mm ind / 102mm exd) Turbo (GTX-R Series) - 67mm Class Dominator
Brand: PT Turbo
SKU: PTT-TBO-J20
Availability: InStock

Specifications

Compressor Wheel Inducer: 67.8mm
Compressor Wheel Exducer: 102mm
Compressor Wheel Trim: Custom
Compressor Housing A/R: 60 A/R
Compressor Inlet: 5″ Inlet
Compressor Outlet: V-Band outlet (4.25″ outer diameter ring and 3.25″ inner diameter)
Turbine Wheel Inducer: 87.0mm
Turbine Wheel Exducer: 80.2mm
Turbine Wheel Trim: 85 trim
Bearing System: Dual-ball bearing construction
Frame Size: Large frame
HP Capacity: Over 1000HP
Turbine Housing Option: T4 Divided, 4″ V-band, 1.01 A/R
Turbine Housing Option: T4 Divided, 4″ V-band, 1.15 A/R
Turbine Housing Option: T4 Divided, 4″ V-band, 1.28 A/R
Turbine Housing Option: T4 Divided, 4″ V-band, 1.44 A/R
Turbine Housing Option: T6 Divided, 5″ V-band, 1.15 A/R
Turbine Housing Option: T4 Undivided, 4″ V-band, 1.44 A/R
Turbine Housing Option: V-Band inlet & outlet, 1.15 A/R

Weight

20 lbs

GT/GTX42 TurbineHousing

T4 Divided, 4" V-band, 1.01 A/R, T4 Divided, 4" V-band, 1.15 A/R, T4 Divided, 4" V-band, 1.28 A/R, T4 Divided, 4" V-band, 1.44 A/R, T6 Divided, 5" V-band, 1.15 A/R, T4 Undivided, 4" V-band, 1.44 A/R, V-Band inlet & outlet, 1.15 A/R, V-Band inlet & outlet, 1.28 A/R, V-Band inlet & outlet, 1.44 A/R, TiAL V-band inlet & outlet, 1.02 A/R, TiAL V-band inlet & outlet, 1.16 A/R, TiAL V-band inlet & outlet, 1.30 A/R
