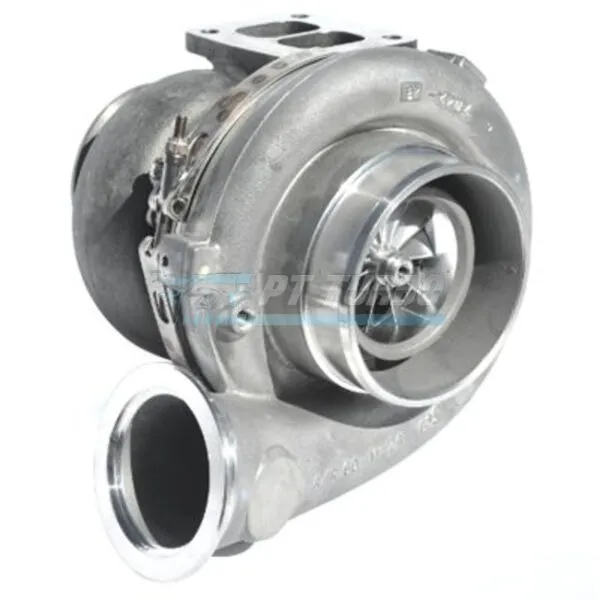

Name: New Ball Bearing Garrett GTX4202R Turbocharger (GTX-R Series) - W/ Turbine Hsg Choices
Brand: Garrett
SKU: PTT-TBO-082
Availability: InStock

GT/GTX42 TurbineHousing

Optional Polished Compressor Housing (+$150.00)

Clear

Specifications

Compressor Wheel Inducer: 75.8mm
Compressor Wheel Exducer: 102.3mm
Compressor Wheel Trim: 55
Compressor Housing A/R: 60 A/R
Compressor Housing Feature: Built-in ported shroud (anti-surge)
Compressor Inlet: 5″
Compressor Outlet: V-Band (4.5″ outer diameter ring, 3.5″ tube)
Turbine Wheel Inducer: 82mm

Weight	20 lbs
GT/GTX42 TurbineHousing	T4 Divided, 4" V-band, 1.01 A/R, T4 Divided, 4" V-band, 1.15 A/R, T4 Divided, 4" V-band, 1.28 A/R, T4 Divided, 4" V-band, 1.44 A/R, T6 Divided, 5" V-band, 1.15 A/R, T4 Undivided, 4" V-band, 1.44 A/R, V-Band inlet & outlet, 1.15 A/R, V-Band inlet & outlet, 1.28 A/R, V-Band inlet & outlet, 1.44 A/R, TiAL V-band inlet & outlet, 1.02 A/R, TiAL V-band inlet & outlet, 1.16 A/R, TiAL V-band inlet & outlet, 1.30 A/R
Optional Polished Compressor Housing (+$150.00)	Standard finish (not polished), Polished Comp. Housing Option
Turbo Model	GTX4202R
