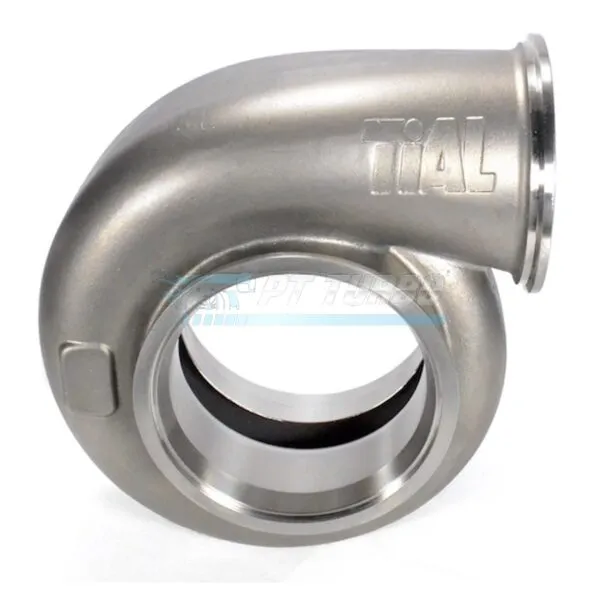

Housing, Turbine, TiAL P/N 006399, V-band inlet/outlet, GTX50R, 1.45 A/R

Flanges and clamps

The housing takes the same manifold-side and downpipe-side flanges and clamps as the TiAL housings for the GT/GTX42 and GT/GTX45 series, with one exception. The centering ring of the 42/45 downpipe flange does not fit, because the turbine wheel bore of the GTX50 is larger; the outside diameter is the same. Use the downpipe flange with the larger bore and centering ring made for the GT/GTX47 and GT/GTX50 housings.

Matching parts (sold separately)

• V-band inlet flange, manifold side
• V-band inlet clamp
• V-band outlet flange with the larger bore, downpipe side
• V-band outlet clamp
• V-band clamp that holds the housing to the Garrett CHRA or supercore

Call (909) 824-1020 with your turbo part number and we will match the set.
