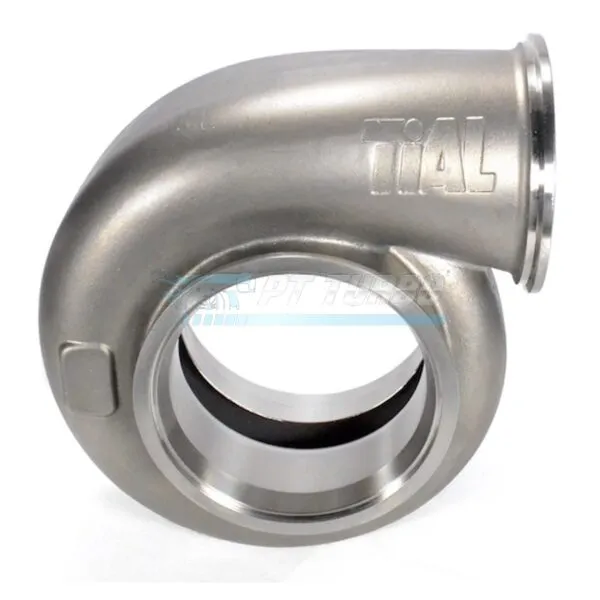

Housing, Turbine, TiAL P/N 006393, V-band inlet/outlet, GTX50R, 1.17 A/R

Specifications

• A/R Ratio: 1.17
• Inlet Type: V-band
• Outlet Type: V-band
• Material: Stainless (TiAL)
• Application: GTX50R
• Garrett P/N: 006393

Compatibility & Fitment

• Designed for Garrett GTX50R turbochargers
• Shares inlet and outlet (manifold and downpipe) flanges and clamps with TiAL housings used on GT/GTX42 and GT/GTX45 series
• Downpipe flange centering ring from GT/GTX42-45 does not fit due to the larger GTX50 turbine wheel bore, though the outer diameter fits the same
• Requires flange product code (larger bore with centering ring) for proper fitment to GT/GTX 47/50 series housing

Matching parts (sold separately)

• V-Band Inlet Flange (for Turbo Manifold)
• V-Band Inlet Clamp
• V-Band Outlet Flange (for Downpipe)
• V-Band Outlet Clamp
• V-Band Clamp to attach TiAL Housing to Garrett CHRA (or supercore)

Call (909) 824-1020 and we add the matching flange and clamp to your order.
