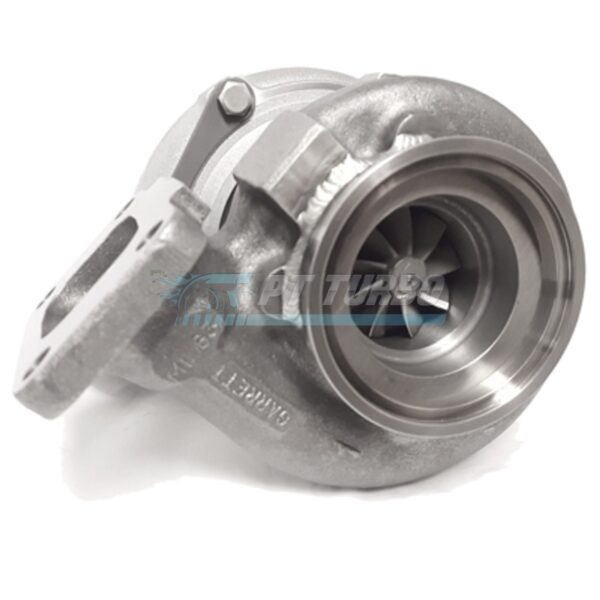

The Garrett GTX3067R!! is a dual ball bearing turbocharger built for enthusiasts who demand serious power without sacrificing response. Featuring Garrett’s advanced GTX aero compressor wheel technology, this unit delivers the perfect balance of quick spool characteristics and strong top-end capability. It’s the ideal choice for builders targeting a high-performance street or track application that requires both durability and output.
Specifications
- Compressor Wheel Inducer: 49.7mm
- Compressor Wheel Exducer: 67.4mm
- Compressor Wheel Trim: 55
- Compressor Housing: .60 A/R
- Turbine Wheel Inducer: 60.0mm
- Turbine Wheel Exducer: 55.0mm
- Turbine Wheel Trim: 84
- Turbine Housing A/R: .82 A/R
- Turbine Housing Flange: T3 Undivided
- Turbine Housing Outlet: Welded 3″ GTVB
- Bearing System: Dual Ball Bearing
- HP Capacity: 500HP+
- Garrett P/N: GTX3067R!!
Performance & Application
Built around Garrett’s advanced GTX aero compressor wheel design, this turbocharger supports builds targeting 500HP+ output. The dual ball bearing architecture provides the responsiveness performance enthusiasts expect from a GTX-series unit, while the .82 A/R T3 undivided welded 3″ GTVB turbine housing is configured to complement that power range. This turbo is suited for builders who want a proven GTX platform capable of handling serious horsepower demands.
Frequently Asked Questions
- What HP can the GTX3067R!! support?
- The GTX3067R!! is rated to support 500HP+ thanks to its advanced Garrett GTX aero compressor wheel.
- Is the GTX3067R!! a ball bearing or journal bearing turbo?
- The GTX3067R!! is a dual ball bearing turbocharger.
- What turbine housing configuration does the GTX3067R!! use?
- It uses a .82 A/R T3 undivided welded 3″ GTVB turbine housing.
- What is the compressor housing A/R on the GTX3067R!!?
- The compressor housing is a .60 A/R.
For enthusiasts building toward the 500HP+ mark, the GTX3067R!! delivers the dual ball bearing responsiveness and proven GTX aero compressor performance needed to get there with confidence.
