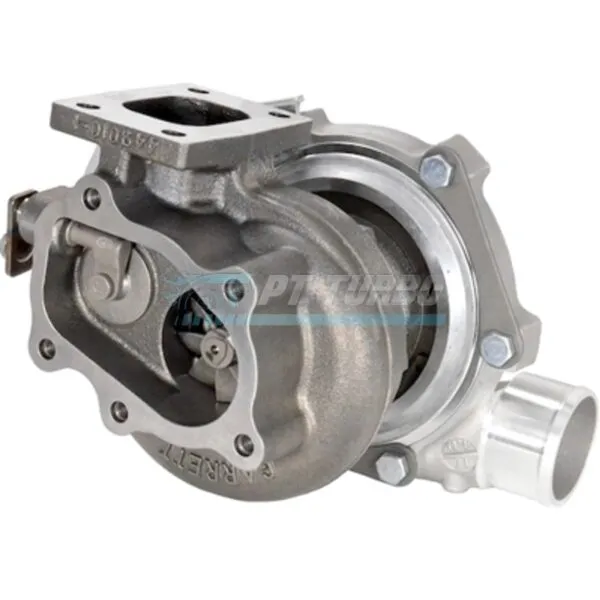

GTX2967R DBB turbo w/ 14 psi act .86 A/R T25 Flanged Garrett Int W/G Tbn Hsg

The Garrett GTX2967R dual ball bearing turbocharger is built for enthusiasts who demand serious top-end power without sacrificing the ability to drop straight into an existing GT28 or GTX28 series setup. With its integrated wastegate turbine housing and high-flow compressor wheel, this turbo is engineered for builders chasing a substantial power upgrade while keeping installation straightforward. It’s the choice for those who want proven Garrett GTX-R technology in a familiar, bolt-in package.

Specifications

• Compressor Wheel Inducer: 50mm
• Compressor Wheel Exducer: 67mm
• Compressor Wheel Trim: 55
• Turbine Wheel Inducer: 57mm
• Turbine Wheel Exducer: 52mm
• Turbine Wheel Trim: 84
• A/R Ratio: .86
• Bearing Type: Dual Ball Bearing
• Turbine Housing: Garrett Internal Wastegate (T25 Flanged)
• Wastegate Actuator: 14 psi
• HP Potential: 500HP

Performance & Application

The GTX2967R is designed to deliver serious power potential while retaining the responsiveness expected from a dual ball bearing center cartridge. Its internal wastegate turbine housing simplifies installation for platforms already running GT28 or GTX28 series turbochargers, making it an ideal upgrade path for enthusiasts looking to extract more performance from a proven housing configuration. This turbo suits builds targeting substantial horsepower gains where a direct-fit solution is a priority.

Compatibility & Fitment

• Direct drop-in replacement for existing GT28 series turbochargers
• Direct drop-in replacement for existing GTX28 series turbochargers

Frequently Asked Questions

Is the GTX2967R a ball bearing or journal bearing turbo?

The GTX2967R is a dual ball bearing turbocharger.

What HP can the GTX2967R support?

The GTX2967R offers 500HP potential flow.

What is the A/R ratio of the GTX2967R’s turbine housing?

The turbine housing uses a .86 A/R ratio.

Can the GTX2967R be used as a direct replacement for other turbos?

Yes, the GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers.

For builders seeking a direct upgrade path with serious power potential and Garrett’s dual ball bearing performance, the GTX2967R delivers a proven, bolt-in solution.
